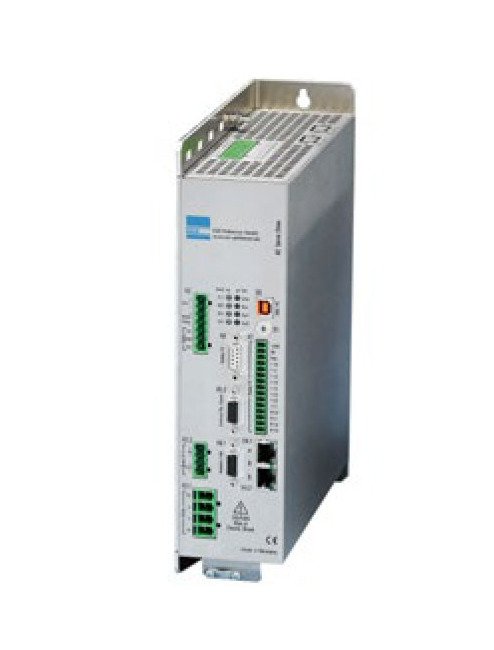

Dunkermotoren DME Series Digital Servo Controller
Dunkermotoren DME Series Digital Servo Controller
SKU:DME-61861a
Advanced Dunkermotoren Digital Servo Controller with 22A peak output, USB/Profinet interface, and CE compliance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren DME Series Digital Servo Controller
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren DME Series Digital Servo Controller
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren DME Series Digital Servo Controller is a high-performance controller designed for precise motion control applications. With a peak output current of 22A and continuous RMS output current of 8A, this controller ensures smooth operation in slave mode with Safety Torque Off (STO) functionality. It features a Universal Serial Bus (USB) and Profinet Input/Output (I/O) standard interface for seamless connectivity. Moreover, it integrates motor feedback inputs, digital I/Os, and efficiency of 97.8%, meeting European Conformity (CE) standards for safety and quality.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuit
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
8 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.8 %
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
560 to 680 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
3 x 400 to 480 V
Technical Specs Operation Modes
Slave
Technical Specs Peak Output Current
22 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
Profinet Input/Output (I/O) | Universal Serial Bus (USB)
Technical Specs Weight
2.8 kg
Technical Specs Width
275 mm
