Dunkermotoren GR Series 1.1A DC Motor | 119.3W Power
Dunkermotoren GR Series 1.1A DC Motor | 119.3W Power
SKU:GRS-94b0cf
Experience superior performance with Dunkermotoren GR Series DC Motor - ideal for institutional applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Dunkermotoren GR Series 1.1A DC Motor | 119.3W Power
$129.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series 1.1A DC Motor | 119.3W Power
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

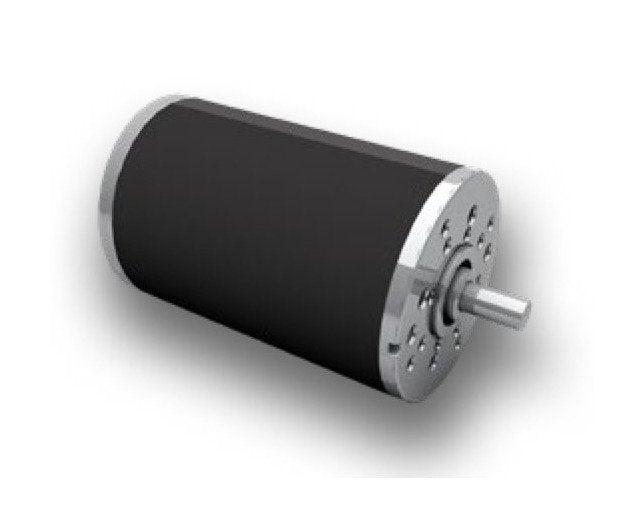

The Dunkermotoren GR Series 1.1A DC Motor is engineered for precision and performance. With a maximum output power of 119.3W, this motor offers long-lasting reliability, high efficiency, and robust design. It features low detent torques, high dynamic acceleration, and compliance with IP54 protection standards. Ideal for institutional and government applications requiring high-quality components.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
50 W
Technical Specs Demagnetisation Current
⥠9.5 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
119.3 W
Technical Specs Maximum Torque
1.16 N·m
Technical Specs Nominal Current
1.1 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
50 W
Technical Specs Nominal Speed
3300 rpm
Technical Specs Nominal Torque
0.145 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.135 A
Technical Specs No Load Speed
3600 rpm
Technical Specs Peak Power
119 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
400 g/cm²
Technical Specs Stall Torque
1.16 N·m
Technical Specs Starting Current
7.6 A
Technical Specs Terminal Inductance
17.4 mH
Technical Specs Terminal Resistance
7.89 Ω
Technical Specs Torque Constant
0.153 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
