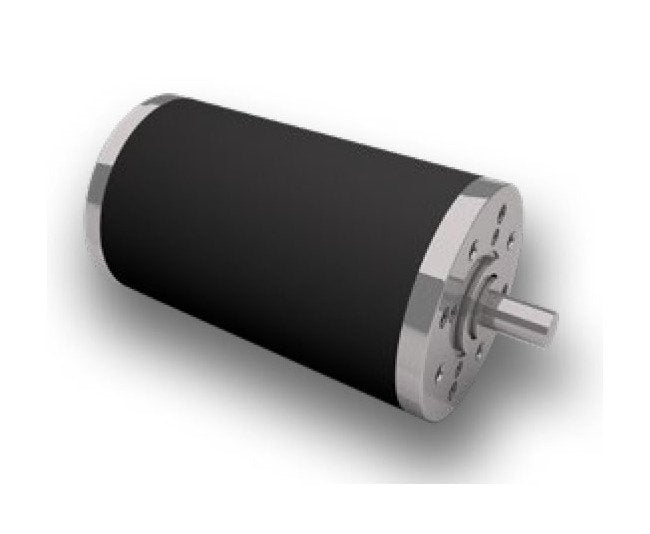

Dunkermotoren GR Series 2.7A 308W Brushed DC Motor
Dunkermotoren GR Series 2.7A 308W Brushed DC Motor
SKU:GRS-ff9afb
Powerful Dunkermotoren GR Series DC Motor for efficient and reliable performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren GR Series 2.7A 308W Brushed DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series 2.7A 308W Brushed DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with the Dunkermotoren GR Series 2.7 Ampere Nominal Current and 308 Watt Maximum Output Power Brushed Direct Current Motor. This motor ensures high efficiency, low noise, and robust design. With long life expectancy, high dynamic acceleration, and compliance with China Quality Certification, CE, and UL standards, it's ideal for institutional and industrial applications.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
139 W
Technical Specs Demagnetisation Current
⥠20 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
308 W
Technical Specs Maximum Torque
3.23 N·m
Technical Specs Nominal Current
2.7 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
126 W
Technical Specs Nominal Speed
3100 rpm
Technical Specs Nominal Torque
0.385 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.21 A
Technical Specs No Load Speed
3350 rpm
Technical Specs Peak Power
385 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
1800 g/cm²
Technical Specs Stall Torque
3.52 N·m
Technical Specs Starting Current
21.7 A
Technical Specs Terminal Inductance
11.3 mH
Technical Specs Terminal Resistance
2.27 Ω
Technical Specs Torque Constant
0.163 N·mA-1
Technical Specs Weight Of Motor
2.8 kg
