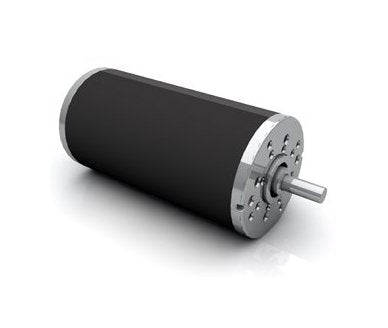

The Dunkermotoren GR Series 3.2 Ampere Brushed DC Motor combines durability with precision engineering. With a maximum output power of 389 Watts and a compact design, this motor offers high efficiency, low maintenance, and excellent regulation characteristics. Compliant with IP54 standards, it ensures protection against dust and water ingress, making it ideal for a range of applications where reliability is key. Designed for longevity and performance, this motor is a market-oriented solution for both consumer and institutional usage.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
126 W
Technical Specs Demagnetisation Current
⥠29 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
389 W
Technical Specs Maximum Torque
3.36 N·m
Technical Specs Nominal Current
3.2 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
135 W
Technical Specs Nominal Speed
3800 rpm
Technical Specs Nominal Torque
0.34 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.35 A
Technical Specs No Load Speed
3950 rpm
Technical Specs Peak Power
368 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
750 g/cm²
Technical Specs Stall Torque
3.76 N·m
Technical Specs Starting Current
34 A
Technical Specs Terminal Inductance
5.4 mH
Technical Specs Terminal Resistance
1.4 Ω
Technical Specs Torque Constant
0.111 N·mA-1
Technical Specs Weight Of Motor
1.7 kg
