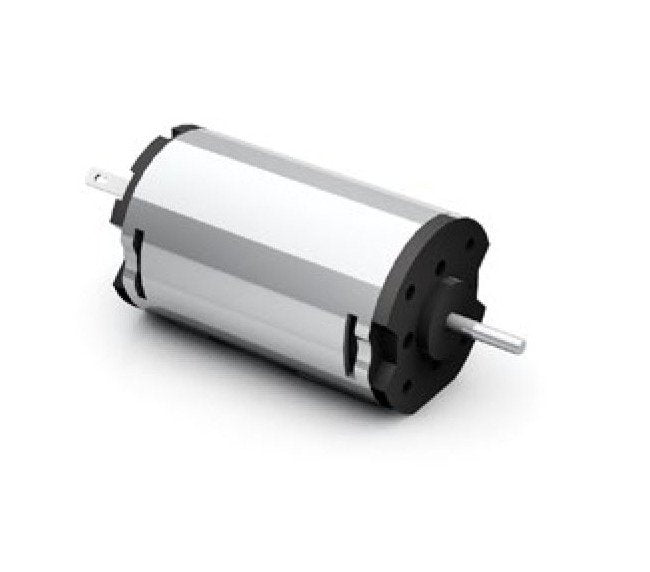

The Dunkermotoren GR Series Brushed DC Motor offers exceptional quality and performance. With a nominal current of 0.4A and a maximum output power of 13.2W, this motor ensures efficient operations and high dynamic acceleration. It features low detent torques, high efficiency, and robust design for a longer lifespan. Additionally, it meets industry standards for interference suppression, vibration resistance, and low noise emission, making it a reliable choice for institutional and government procurement.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
9 W
Technical Specs Demagnetisation Current
⥠3.0 A
Technical Specs Maximum Output Power
13.2 W
Technical Specs Maximum Torque
0.123 N·m
Technical Specs Nominal Current
0.4 A
Technical Specs Nominal Direct Current Dc Voltage
40 V
Technical Specs Nominal Output Power
8.8 W
Technical Specs Nominal Speed
2810 rpm
Technical Specs Nominal Torque
0.03 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.07 A
Technical Specs No Load Speed
4100 rpm
Technical Specs Peak Power
15 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Rotor Inertia
42.2 g/cm²
Technical Specs Stall Torque
0.123 N·m
Technical Specs Starting Current
1.46 A
Technical Specs Terminal Inductance
24.7 mH
Technical Specs Terminal Resistance
27.4 Ω
Technical Specs Torque Constant
0.0873 N·mA-1
Technical Specs Weight Of Motor
0.24 kg
