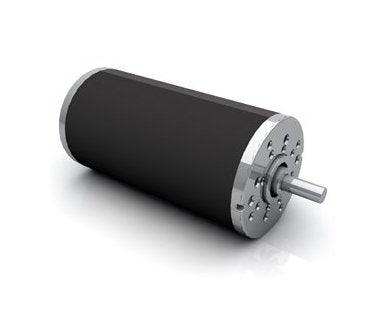

Dunkermotoren GR Series Brushed DC Motor
Dunkermotoren GR Series Brushed DC Motor
SKU:GRS-2bf45c
Experience high performance and durability with the Dunkermotoren GR Series Brushed DC Motor, ideal for various applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Dunkermotoren GR Series Brushed DC Motor
$199.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series Brushed DC Motor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren GR Series Brushed DC Motor offers a durable and efficient solution for a wide range of applications. With a nominal current of 9.1A and a maximum output power of 165W, this motor ensures high performance and reliability. It features low detent torques, high efficiency, and robust design, making it maintenance-free and long-lasting. Certified to meet China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL) standards, it guarantees quality and compliance for institutional and government procurement requirements.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
126 W
Technical Specs Demagnetisation Current
⥠94 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
165 W
Technical Specs Maximum Torque
2.10 N·m
Technical Specs Nominal Current
9.1 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
79.2 W
Technical Specs Nominal Speed
2700 rpm
Technical Specs Nominal Torque
0.28 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
1.0 A
Technical Specs No Load Speed
3000 rpm
Technical Specs Peak Power
368 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
750 g/cm²
Technical Specs Stall Torque
2.10 N·m
Technical Specs Starting Current
60.0 A
Technical Specs Terminal Inductance
0.5 mH
Technical Specs Terminal Resistance
0.2 Ω
Technical Specs Torque Constant
0.035 N·mA-1
Technical Specs Weight Of Motor
1.7 kg
