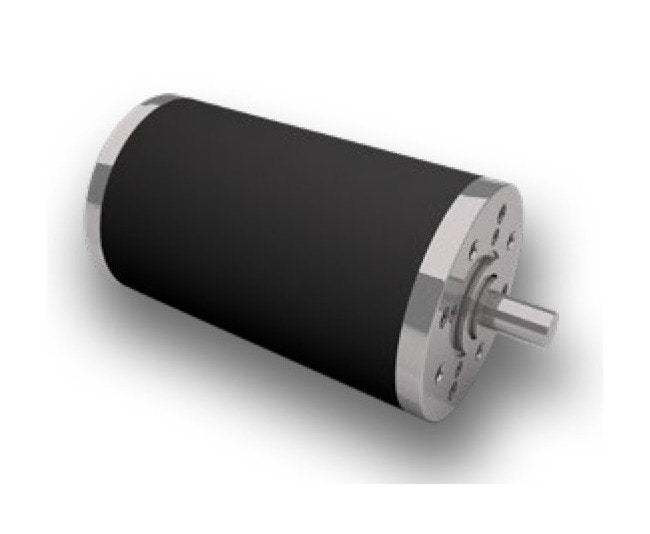

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

GRS-16530d

High-performance Dunkermotoren GR Series Brushed DC Motor for efficient and reliable operation. IP54 rated.

$299.99
$299.99
Sale

Initiate Order

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

$299.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

Dunkermotoren GR Series Brushed DC Motor 12V 11.5A 194.7W

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren GR Series Brushed DC Motor boasts advanced technology for precise control and high performance. With a nominal voltage of 12V and a powerful output of 194.7W, this motor offers exceptional efficiency and dynamic acceleration. Designed for longevity and low maintenance, it features robust construction and high overload capacity. Compliant with industry standards like CE and UL, this motor ensures reliable operation in various applications.

Product Specifications

Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
139 W
Technical Specs Demagnetisation Current
≥ 96 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
194.7 W
Technical Specs Nominal Current
11.5 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
97.5 W
Technical Specs Nominal Speed
2700 rpm
Technical Specs Nominal Torque
0.345 N·m
Technical Specs Note For Demagnetisation Current
ϑR = 20ºC
Technical Specs Note For Maximum Torque
ϑR = 20ºC
Technical Specs Note For Nominal Current
Δϑw = 100 K
Technical Specs Note For Nominal Output Power
ϑR = 20ºC
Technical Specs Note For Nominal Speed
Δϑw = 100 K
Technical Specs Note For Nominal Torque
Δϑw = 100 K
Technical Specs Note For No Load Current
ϑR = 20ºC
Technical Specs Note For No Load Speed
Δϑw = 100 K
Technical Specs Note For Stall Torque
ϑR = 20ºC
Technical Specs Note For Starting Current
ϑR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.93 A
Technical Specs No Load Speed
3100 rpm
Technical Specs Peak Power
385 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
1800 g/cm²
Technical Specs Stall Torque
2.4 N·m
Technical Specs Starting Current
67 A
Technical Specs Terminal Inductance
0.9 mH
Technical Specs Terminal Resistance
0.18 Ω
Technical Specs Torque Constant
0.036 N·mA-1
Technical Specs Weight Of Motor
2.8 kg
