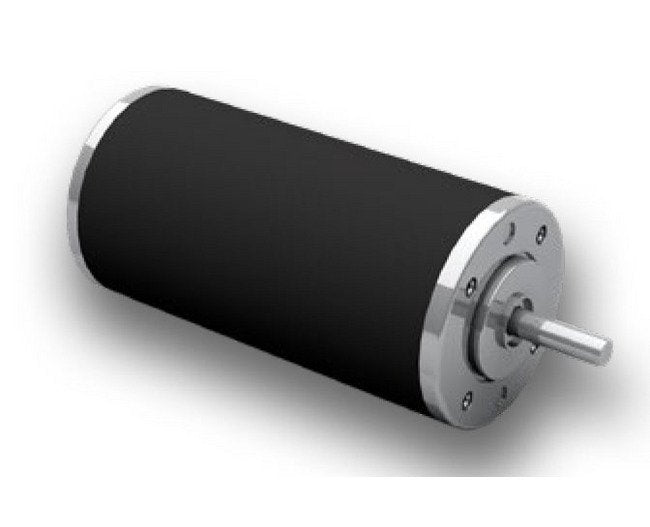

Dunkermotoren GR Series Brushed DC Motor
Dunkermotoren GR Series Brushed DC Motor
SKU:GRS-edb29a
Efficient, robust Dunkermotoren GR Series Brushed DC Motor with customizable options and industry standard compliance for reliable performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren GR Series Brushed DC Motor
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series Brushed DC Motor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren GR Series Brushed DC Motor delivers reliable performance with its mechanical commutation system, providing a long lifespan and operation in both directions. Equipped with ball bearings, optional IP54 cover, and customizable shaft options, this motor offers high efficiency, low detent torques, and robust design. It meets industry standards like China Quality Certification (CQC), CE, and UL, ensuring quality and compliance for institutional procurement needs.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
21 W
Technical Specs Demagnetisation Current
⥠10.5 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
32.3 W
Technical Specs Maximum Torque
0.33 N·m
Technical Specs Nominal Current
1.2 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
18.5 W
Technical Specs Nominal Speed
3100 rpm
Technical Specs Nominal Torque
0.057 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.18 A
Technical Specs No Load Speed
3800 rpm
Technical Specs Peak Power
38 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
110 g/cm²
Technical Specs Stall Torque
0.33 N·m
Technical Specs Starting Current
5.68 A
Technical Specs Terminal Inductance
5.1 mH
Technical Specs Terminal Resistance
4.2 Ω
Technical Specs Torque Constant
0.0584 N·mA-1
Technical Specs Weight Of Motor
0.49 kg
