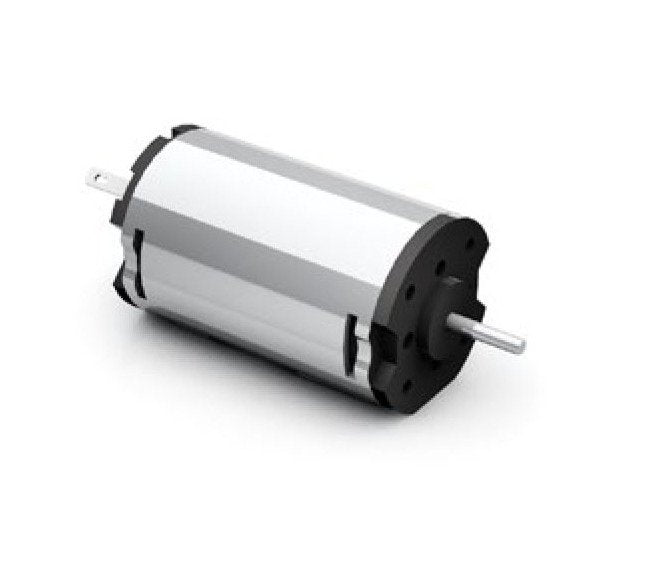

Dunkermotoren GR Series Brushed DC Motor
Dunkermotoren GR Series Brushed DC Motor
SKU:GRS-52ff89
High-performance Dunkermotoren GR Series Brushed DC Motor for efficient and reliable operation. Compliant with industry standards for longevity and precision.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Dunkermotoren GR Series Brushed DC Motor
$99.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series Brushed DC Motor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren GR Series Brushed DC Motor is a high-performance motor designed for longevity and efficiency. With mechanical commutation and low detent torques, it offers reliable operation in both directions. Featuring a ball bearing output shaft and robust design, this motor ensures high dynamic acceleration and low noise. It complies with industry standards for protection class (IP20) and offers options for interference suppression, making it suitable for a wide range of applications requiring precision and durability.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
10 W
Technical Specs Maximum Output Power
8.59 W
Technical Specs Maximum Torque
0.082 N·m
Technical Specs Nominal Current
0.45 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
6.49 W
Technical Specs Nominal Speed
3100 rpm
Technical Specs Nominal Torque
0.020 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.10 A
Technical Specs No Load Speed
4000 rpm
Technical Specs Peak Power
16 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Rotor Inertia
19.5 g/cm²
Technical Specs Stall Torque
0.082 N·m
Technical Specs Starting Current
1.53 A
Technical Specs Terminal Inductance
14.1 mH
Technical Specs Terminal Resistance
15.68 Ω
Technical Specs Torque Constant
0.0559 N·mA-1
Technical Specs Weight Of Motor
0.11 kg
