Dunkermotoren GR Series DC Motor 10A 641W
Dunkermotoren GR Series DC Motor 10A 641W
SKU:GRS-f32c40
Experience top-tier efficiency and durability with the Dunkermotoren GR Series DC Motor. Compliant with industry standards for reliability and performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren GR Series DC Motor 10A 641W
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series DC Motor 10A 641W
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

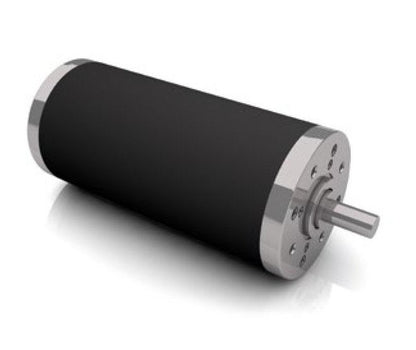

The Dunkermotoren GR Series Brushed DC Motor is engineered for precision and longevity, surpassing industry standards with its low detent torques, high efficiency, and robust design. This motor offers high dynamic acceleration, good regulation characteristics, and maintenance-free operation. With a surface protection rating of IP54, the motor ensures reliability in various environments. Compliant with CQC, CE, and UL certifications, the Dunkermotoren GR Series guarantees top-notch quality, performance, and durability.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
224 W
Technical Specs Demagnetisation Current
⥠91 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
641 W
Technical Specs Maximum Torque
6.06 N·m
Technical Specs Nominal Current
10 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
195 W
Technical Specs Nominal Speed
3150 rpm
Technical Specs Nominal Torque
0.59 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.7 A
Technical Specs No Load Speed
3285 rpm
Technical Specs Peak Power
817 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
3200 g/cm²
Technical Specs Stall Torque
7.45 N·m
Technical Specs Starting Current
112 A
Technical Specs Terminal Inductance
1.5 mH
Technical Specs Terminal Resistance
0.214 Ω
Technical Specs Torque Constant
0.067 N·mA-1
Technical Specs Weight Of Motor
4.0 kg
