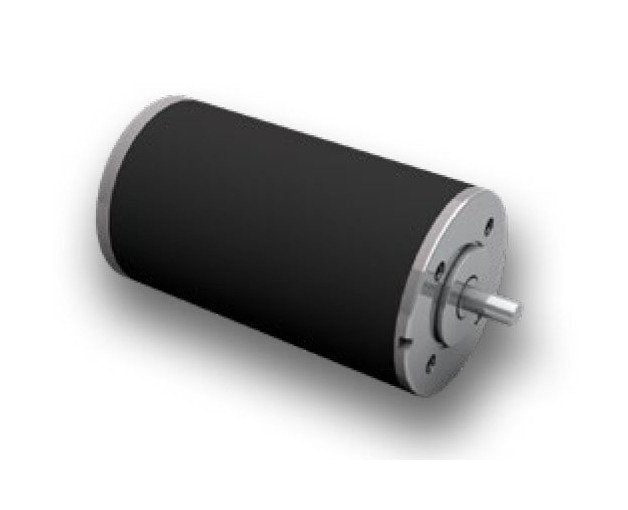

Dunkermotoren GR Series DC Motor - 2.3A, 73.8W
Dunkermotoren GR Series DC Motor - 2.3A, 73.8W
SKU:GRS-fa3530
Powerful Dunkermotoren GR Series DC Motor with 2.3A current and 73.8W output, ideal for precision applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren GR Series DC Motor - 2.3A, 73.8W
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series DC Motor - 2.3A, 73.8W
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren GR Series Brushed DC Motor combines efficiency, durability, and high performance. With a nominal current of 2.3A and a maximum output power of 73.8W, this motor offers high dynamic acceleration, low detent torques, and robust design. Ideal for institutional applications requiring reliability and precision, while meeting IP54 protection standards and industry certifications like CQC, CE, and UL.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseSpecial surfaceInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
39 W
Technical Specs Demagnetisation Current
⥠20 A
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
73.8 W
Technical Specs Maximum Torque
0.67 N·m
Technical Specs Nominal Current
2.3 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
37.7 W
Technical Specs Nominal Speed
3600 rpm
Technical Specs Nominal Torque
0.1 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.28 A
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Power
81 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Rotor Inertia
229 g/cm²
Technical Specs Stall Torque
0.67 N·m
Technical Specs Starting Current
13.5 A
Technical Specs Terminal Inductance
3.6 mH
Technical Specs Terminal Resistance
1.77 Ω
Technical Specs Torque Constant
0.0506 N·mA-1
Technical Specs Weight Of Motor
0.85 kg
