Dunkermotoren GR Series DC Motor
Dunkermotoren GR Series DC Motor
SKU:GRS-1176b0
High-performance Dunkermotoren GR Series DC Motor for reliable and efficient operations.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Dunkermotoren GR Series DC Motor
$99.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren GR Series DC Motor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

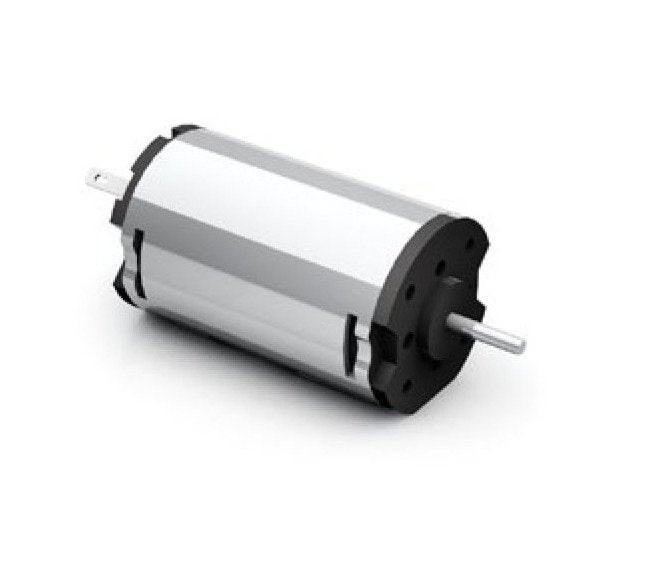

The Dunkermotoren GR Series 0.71A Brushed DC Motor is engineered for longevity, efficiency, low noise, and high dynamic acceleration. With a maximum output power of 14.9W, it offers robust design, maintenance-free operation, and low interference radiation. This motor complies with industry standards, making it a reliable choice for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
9 W
Technical Specs Demagnetisation Current
⥠6.0 A
Technical Specs Maximum Output Power
14.9 W
Technical Specs Maximum Torque
0.13 N·m
Technical Specs Nominal Current
0.71 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
9.5 W
Technical Specs Nominal Speed
3030 rpm
Technical Specs Nominal Torque
0.03 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.13 A
Technical Specs No Load Speed
4400 rpm
Technical Specs Peak Power
15 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Rotor Inertia
41.9 g/cm²
Technical Specs Stall Torque
0.13 N·m
Technical Specs Starting Current
2.7 A
Technical Specs Terminal Inductance
8.0 mH
Technical Specs Terminal Resistance
8.9 Ω
Technical Specs Torque Constant
0.05 N·mA-1
Technical Specs Weight Of Motor
0.24 kg
