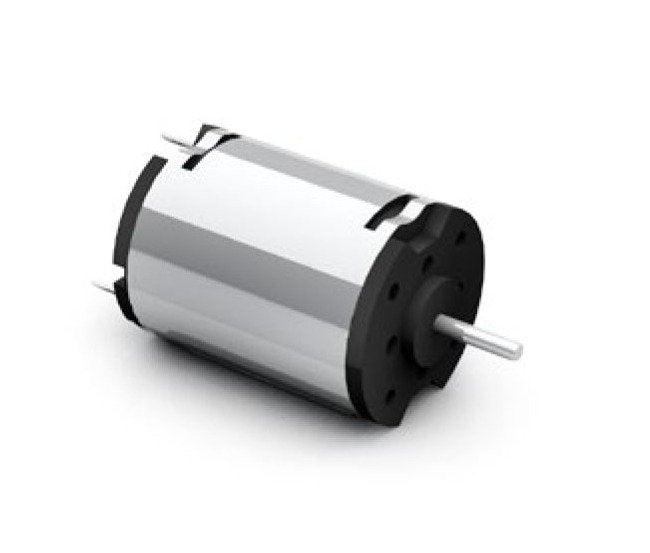

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

GRS-576f15

Versatile Dunkermotoren GR Series DC Motor - High Performance & Compliance

$39.99
$39.99
Sale

Initiate Order

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

$39.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

Dunkermotoren GR Series DC Motor - 9.5W, 0.28A, 3600rpm

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren GR Series Brushed DC Motor offers exceptional performance and longevity, ideal for applications requiring high efficiency and dynamic acceleration. With features like low detent torques, maintenance-free operation, and robust design, these motors ensure reliable operation in both directions of rotation. Compliant with industry standards, including robustness against interference and optional interference suppression, these motors are a versatile and market-oriented solution for various institutional and government procurement needs.

Product Specifications

Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
9 W
Technical Specs Maximum Output Power
9.5 W
Technical Specs Maximum Torque
0.069 N·m
Technical Specs Nominal Current
0.28 A
Technical Specs Nominal Direct Current Dc Voltage
40 V
Technical Specs Nominal Output Power
6.6 W
Technical Specs Nominal Speed
3600 rpm
Technical Specs Nominal Torque
0.0175 N·m
Technical Specs Note For Maximum Torque
ϑR = 20ºC
Technical Specs Note For Nominal Current
Δϑw = 100 K
Technical Specs Note For Nominal Output Power
ϑR = 20ºC
Technical Specs Note For Nominal Speed
Δϑw = 100 K
Technical Specs Note For Nominal Torque
Δϑw = 100 K
Technical Specs Note For No Load Current
ϑR = 20ºC
Technical Specs Note For No Load Speed
Δϑw = 100 K
Technical Specs Note For Stall Torque
ϑR = 20ºC
Technical Specs Note For Starting Current
ϑR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.064 A
Technical Specs No Load Speed
5300 rpm
Technical Specs Peak Power
15 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Rotor Inertia
18.5 g/cm²
Technical Specs Stall Torque
0.069 N·m
Technical Specs Starting Current
1.04 A
Technical Specs Terminal Inductance
33.5 mH
Technical Specs Terminal Resistance
38.5 Ω
Technical Specs Torque Constant
0.0702 N·mA-1
Technical Specs Weight Of Motor
0.11 kg
