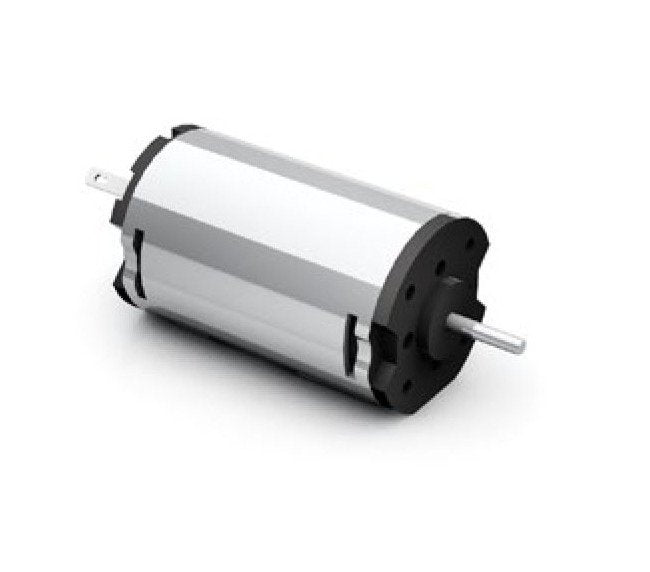

The Dunkermotoren GR Series 1.4A Nominal Current and 13.93W Maximum Output Power Brushed DC Motor is a top choice for institutional and government buyers. Featuring mechanical commutation for a long lifespan, this motor offers bidirectional operation, high efficiency, and robust design. With low noise, interference suppression, and vibration resistance, it ensures reliable performance. Compliant with industry standards, including IP20 protection, it integrates seamlessly into modular systems for flexible solutions.
Product Specifications
Additional Information Additional Information
The DC motors can be combined with control electronics, gearboxes, brakes and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren GR range (commutated DC motors) are notable for:Longer life than commutated motors from other manufacturersLow detent torquesHigh efficiencyHigh dynamic accelerationGood regulation characteristicsMaintenance-freeRobust designLow moment of inertiaExtremely high short time overload capacity of the motorSurface protectionMinimum interference radiation, optionalinterference suppressionHigh quality due to fully automated production linesLow noiseInterference suppression optionalVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
9 W
Technical Specs Demagnetisation Current
⥠11.5 A
Technical Specs Maximum Output Power
13.93 W
Technical Specs Maximum Torque
0.129 N·m
Technical Specs Nominal Current
1.4 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
9.4 W
Technical Specs Nominal Speed
2980 rpm
Technical Specs Nominal Torque
0.03 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.25 A
Technical Specs No Load Speed
4130 rpm
Technical Specs Peak Power
15 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Rotor Inertia
42.2 g/cm²
Technical Specs Stall Torque
0.129 N·m
Technical Specs Starting Current
4.6 A
Technical Specs Terminal Inductance
2.61 mH
Technical Specs Terminal Resistance
2.61 Ω
Technical Specs Torque Constant
0.0288 N·mA-1
Technical Specs Weight Of Motor
0.24 kg
