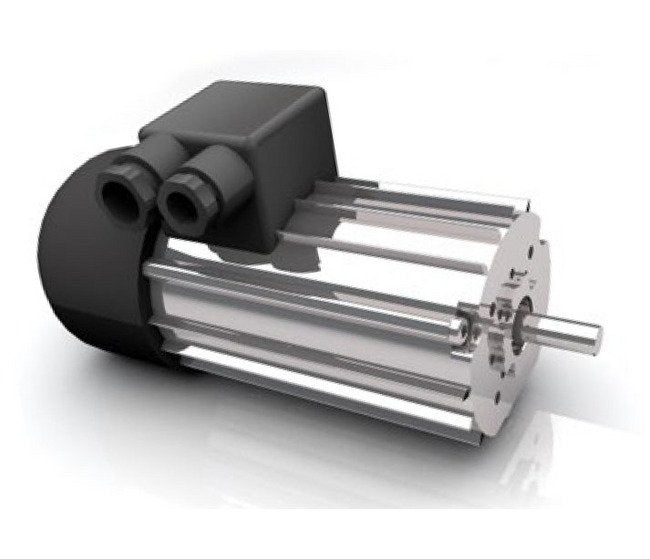

Dunkermotoren KD/DR 0.293 N•m AC Motor

Dunkermotoren KD/DR 0.293 N•m AC Motor

KDD-5969d7

Versatile Dunkermotoren AC Motor with 0.293 N•m torque and IP65 protection, ideal for industrial applications.

$329.99
$329.99
Sale

Initiate Order

Dunkermotoren KD/DR 0.293 N•m AC Motor

Dunkermotoren KD/DR 0.293 N•m AC Motor

$329.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren KD/DR 0.293 N•m AC Motor

Dunkermotoren KD/DR 0.293 N•m AC Motor

$329.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren KD/DR Series 0.293 N•m AC Motor is expertly crafted to meet the demanding needs of frequency converters or long supply cable applications. Its phase insulation adheres to VDE 0530-18-41 standards, while the integrated temperature switch with an NC contact ensures optimal performance. With a large metal terminal box boasting an IP65 ingress protection rating, this motor guarantees durability and reliability in various industrial settings. It features a nominal output power of 79.6 W, a nominal speed of 2600 rpm, and a vibration-resistant design, making it a top choice for both consumer and institutional buyers.

Product Specifications

Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Δ) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
370 g/cm²
Technical Specs Nominal Output Power Pn
79.6 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.293 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Power
76 to 87 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Pull Out Torque Mk
0.507 N·m
Technical Specs Rated Current In
0.27 A
Technical Specs Starting Torque Ma
0.498 N·m
Technical Specs Weight M B 14 Din 42950
2.00 kg
