Dunkermotoren KD/DR Series AC Motor - 0.048 N·m Nominal Torque
Dunkermotoren KD/DR Series AC Motor - 0.048 N·m Nominal Torque
SKU:KDD-a2d89f
Get the robust Dunkermotoren KD/DR AC Motor for reliable, long-lasting performance. Ideal for varied applications, it comes with built-in cooling and ball bearings.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Dunkermotoren KD/DR Series AC Motor - 0.048 N·m Nominal Torque
$289.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD/DR Series AC Motor - 0.048 N·m Nominal Torque
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

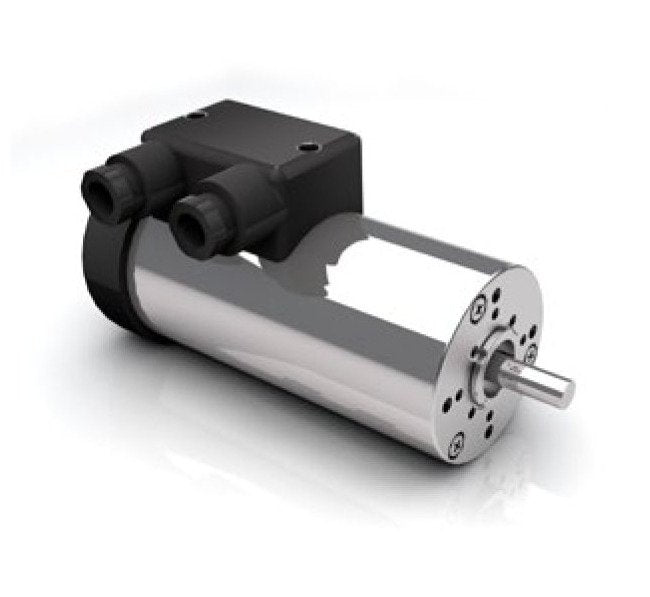

The Dunkermotoren KD/DR Series AC Motor offers a rugged design with maintenance-free operation throughout its lifetime. Featuring ball bearings and surface cooling by a built-in blower, this motor ensures maximum longevity. With a three-phase, four-pole reversible rotational direction design, this motor is available in different lengths to suit various applications. It boasts technical excellence meeting industry standards like IP54 protection and certifications from CQC and UL.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î) | Star (Y)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
234 g/cm²
Technical Specs Nominal Output Power Pn
6 W
Technical Specs Nominal Speed Nn
1200 rpm
Technical Specs Nominal Torque Mn
0.048 N·m
Technical Specs Nominal Voltage
230 V | 400 V
Technical Specs Note For Frequency
For 50 Hz operation. Not included in scope of delivery
Technical Specs Power
5 to 14 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.079 N·m
Technical Specs Rated Current In
0.06 A
Technical Specs Starting Torque Ma
0.077 N·m
Technical Specs Weight M B 14 Din 42950
1.2 kg
