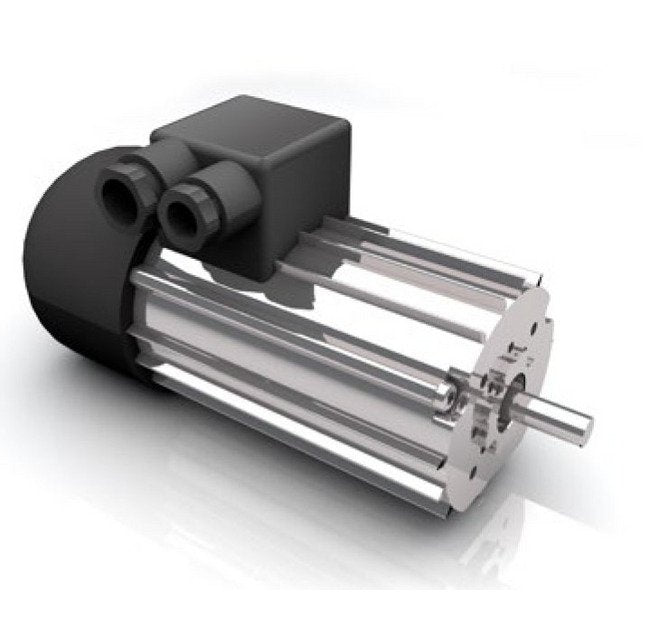

Dunkermotoren KD Series 0.202 N·m AC Motor
Dunkermotoren KD Series 0.202 N·m AC Motor
SKU:KDD-35463f
Dunkermotoren KD Series AC Motor: Durable, high-performance motor meeting IP54, CQC, and UL standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Dunkermotoren KD Series 0.202 N·m AC Motor
$129.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD Series 0.202 N·m AC Motor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren KD Series AC Motor is a durable and low-maintenance solution designed for industrial applications. With built-in ball bearings and surface cooling, this motor offers exceptional longevity. Featuring a three-phase, four-pole design with reversible rotational direction, it provides versatile performance. Certified with IP54 protection and meeting China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, this motor ensures reliable operation in various environments.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housingEnd shields made of die-cast aluminumPhases with isolation state for frequency operation
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
5 µF
Phase Shifting Capacitor1 Voltage Uc
~260 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
370 g/cm²
Technical Specs Nominal Output Power Pn
25 W
Technical Specs Nominal Speed Nn
1200 rpm
Technical Specs Nominal Torque Mn
0.202 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
25 to 31 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.228 N·m
Technical Specs Rated Current In
0.37 A
Technical Specs Starting Torque Ma
0.154 N·m
Technical Specs Weight M B 14 Din 42950
2.00 kg
