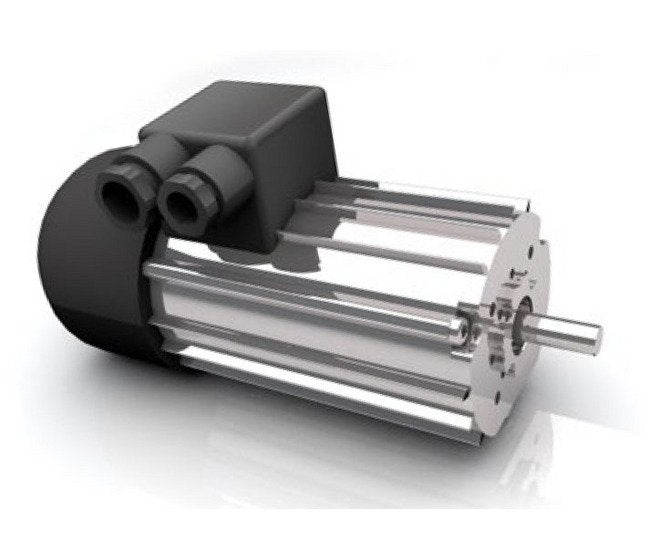

Dunkermotoren KD Series 0.28 Nm AC Motor
Dunkermotoren KD Series 0.28 Nm AC Motor
SKU:KDD-1dcda8
Dunkermotoren KD Series 0.28 Nm AC Motor: Rugged, maintenance-free, and high-performance motor with IP65 protection and industry certifications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren KD Series 0.28 Nm AC Motor
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD Series 0.28 Nm AC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren KD Series 0.28 Nm AC Motor is a rugged and maintenance-free motor designed for longevity. With ball bearings and surface cooling, it ensures maximum lifetime performance. This motor features a three-phase, two-pole design with reversible rotational direction, available in various lengths. Rated at 230V and 50/60Hz frequency, it delivers 76W power with a nominal torque of 0.28 Nm. Meeting IP65 protection class and industry certifications like CQC and UL, it offers vibration resistance and can be combined with gearboxes and brakes.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housing
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
8 µF
Phase Shifting Capacitor1 Voltage Uc
~260 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
370 g/cm²
Technical Specs Nominal Output Power Pn
76 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.28 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
76 to 87 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Pull Out Torque Mk
0.332 N·m
Technical Specs Rated Current In
0.66 A
Technical Specs Starting Torque Ma
0.154 N·m
Technical Specs Weight M B 14 Din 42950
2.00 kg
