Dunkermotoren KD Series AC Motor
Dunkermotoren KD Series AC Motor
SKU:KDD-c4b50a
Rugged, maintenance-free Dunkermotoren KD Series AC Motor with maximum lifetime reliability and dual certifications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren KD Series AC Motor
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD Series AC Motor
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

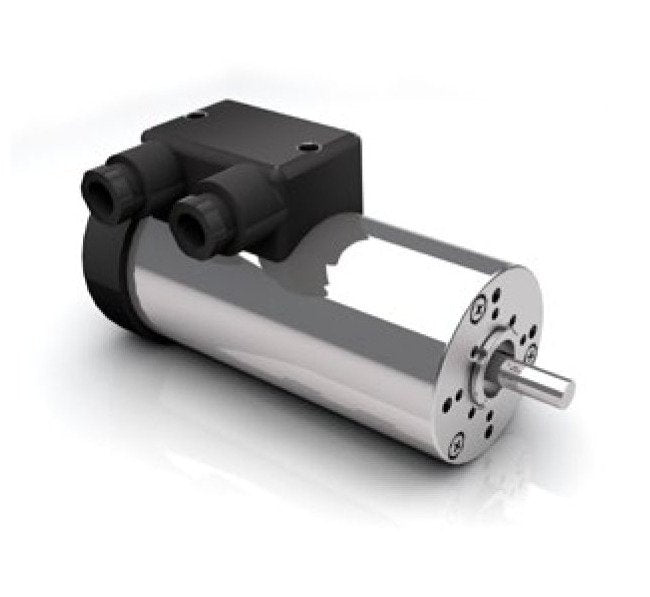

The Dunkermotoren KD Series 0.069 N·m Nominal Torque MN AC Motor is a rugged and maintenance-free motor designed for longevity. Featuring ball bearings and surface cooling, this motor offers maximum lifetime reliability. With a three-phase, four-pole design and reversible rotational direction, it provides versatility for various applications. Additionally, this motor meets China Quality Certification (CQC) and Underwriters Laboratories (UL) standards, ensuring quality and compliance in institutional settings.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
2 µF
Phase Shifting Capacitor1 Voltage Uc
~260 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
280 g/cm²
Technical Specs Nominal Output Power Pn
9 W
Technical Specs Nominal Speed Nn
1300 rpm
Technical Specs Nominal Torque Mn
0.069 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Note For Frequency
For 50 Hz operation. Not included in scope of delivery
Technical Specs Power
5 to 14 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.1 N·m
Technical Specs Rated Current In
0.17 A
Technical Specs Starting Torque Ma
0.062 N·m
Technical Specs Weight M B 14 Din 42950
1.7 kg
