Dunkermotoren KD Series AC Motor
Dunkermotoren KD Series AC Motor
SKU:KDD-266c0d
Dunkermotoren KD Series AC Motor - Robust design, IP54 protection, high vibration resistance, compliant with CQC & UL.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Dunkermotoren KD Series AC Motor
$149.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD Series AC Motor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

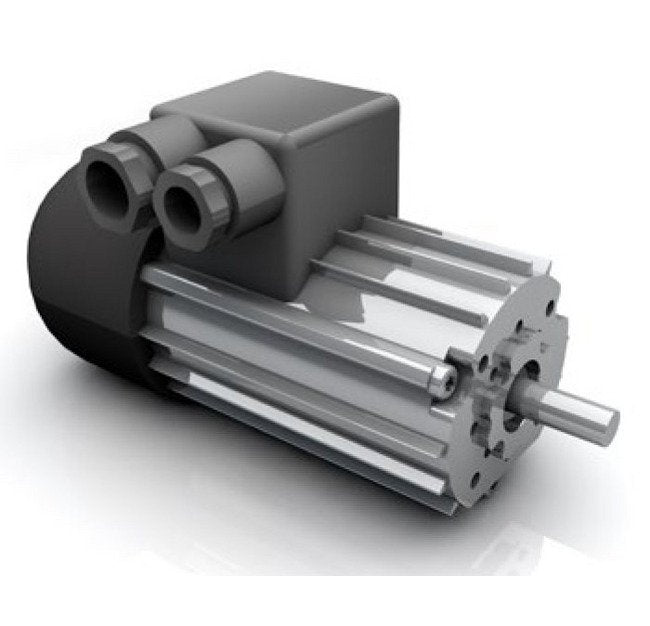

The Dunkermotoren KD Series offers a robust design with built-in blower cooling, reversible rotation, and high vibration resistance. With a Nominal Torque of 0.09 N·m and Ingress Protection rating of IP54, this motor is suitable for various applications. Compliant with industry standards like CQC and UL, it ensures reliable performance and durability.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 54 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class FSurface protected by aluminum housing
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
4 µF
Phase Shifting Capacitor1 Voltage Uc
~260 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
230 g/cm²
Technical Specs Nominal Output Power Pn
25 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.09 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
25 to 30 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.111 N·m
Technical Specs Rated Current In
0.30 A
Technical Specs Starting Torque Ma
0.06 N·m
Technical Specs Weight M B 14 Din 42950
1.2 kg
