Dunkermotoren KD Series N·m AC Motor
Dunkermotoren KD Series N·m AC Motor
SKU:KDD-fbb423

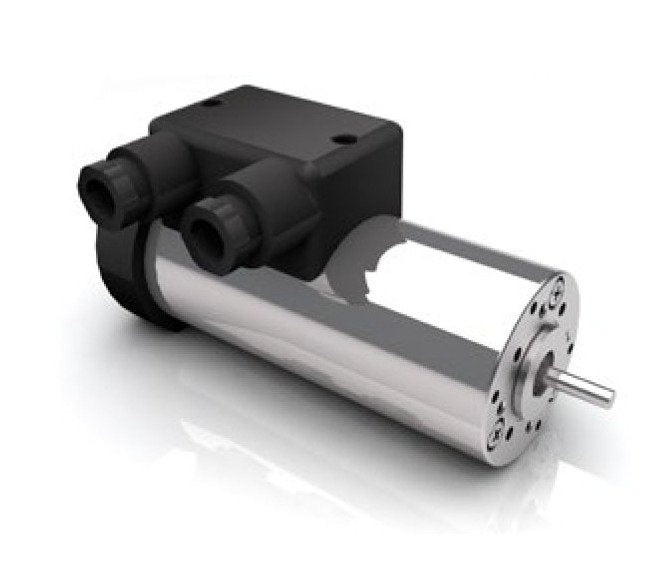

Experience rugged reliability with the Dunkermotoren KD Series AC Motor, featuring maintenance-free operation and reversible rotational direction.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Dunkermotoren KD Series N·m AC Motor
$139.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren KD Series N·m AC Motor
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren KD Series AC Motor is designed for rugged performance and reliability, featuring maintenance-free operation, ball bearings for maximum lifetime, and reversible rotational direction. With a nominal torque of 0.075 N·m, this motor is ideal for various industrial applications. It meets industry standards like China Quality Certification and UL, ensuring quality and compliance.
Product Specifications
Additional Information Additional Information
Can be combined with gearboxes and brakesIP 44 protected when flange-mountedInsulation material according to VDE 0530, corresponds to insulation class ESurface protected by passivated housing
Features Features
Vibration resistance
Phase Shifting Capacitor1 Capacitance Cb
2.5 µF
Phase Shifting Capacitor1 Voltage Uc
~260 V
Technical Specs Brands
Dunkermotoren
Technical Specs Connection Type
Delta (Î)
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Moment Of Intertia J
206 g/cm²
Technical Specs Nominal Output Power Pn
20 W
Technical Specs Nominal Speed Nn
2600 rpm
Technical Specs Nominal Torque Mn
0.075 N·m
Technical Specs Nominal Voltage
230 V
Technical Specs Power
20 to 22 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Pull Out Torque Mk
0.089 N·m
Technical Specs Rated Current In
0.21 A
Technical Specs Starting Torque Ma
0.041 N·m
Technical Specs Weight M B 14 Din 42950
1.1 kg
