Dunkermotoren Linear Motor - Peak Force 312N, Peak Current 20A
Dunkermotoren Linear Motor - Peak Force 312N, Peak Current 20A
SKU:LIN-ec33cb
High-performance linear motor for precise positioning up to 1151mm strokes, peak force 312N, peak current 20A, and CE compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor - Peak Force 312N, Peak Current 20A
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor - Peak Force 312N, Peak Current 20A
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

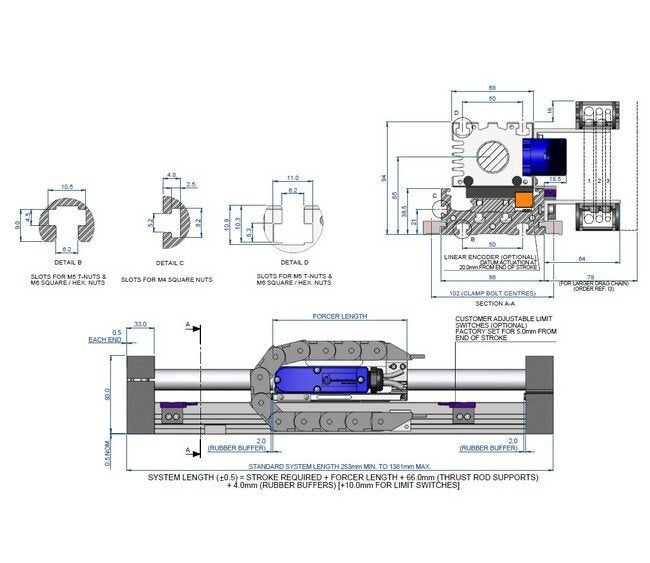

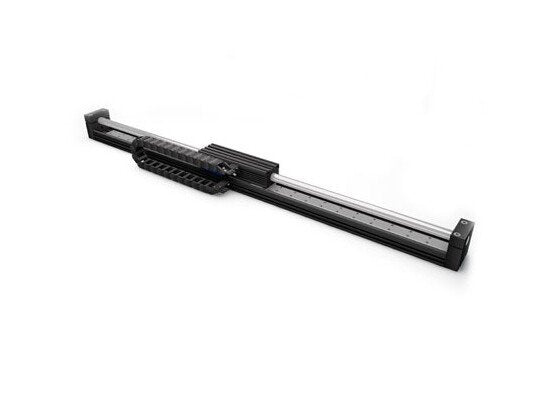

The Dunkermotoren SM Series 312N Peak Force Linear Motor is a high-performance servoTube module designed for precise and rapid positioning with strokes up to 1151 mm. With a peak power of 780W and continuous power of 90W, this linear motor offers low noise operation, vibration resistance, and integrated position sensing for accurate feedback control. Its ball-guided linear rail and integrated position sensor (SIN/COS) ensure reliable and efficient operation, making it ideal for high-speed applications. This linear motor also features force mode operation, 0.01mm repeatability, and compliance with European Conformity (CE) standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches / high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.92 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
42.5 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
8.5 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
222 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
312 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
