Dunkermotoren Linear Motor SL 38 STL Series
Dunkermotoren Linear Motor SL 38 STL Series
SKU:LIN-66a5dc
Highly dynamic 3-phase linear motor with 1581N peak force and 30A peak current. Ideal for precise positioning and high force applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor SL 38 STL Series
$1,899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor SL 38 STL Series
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

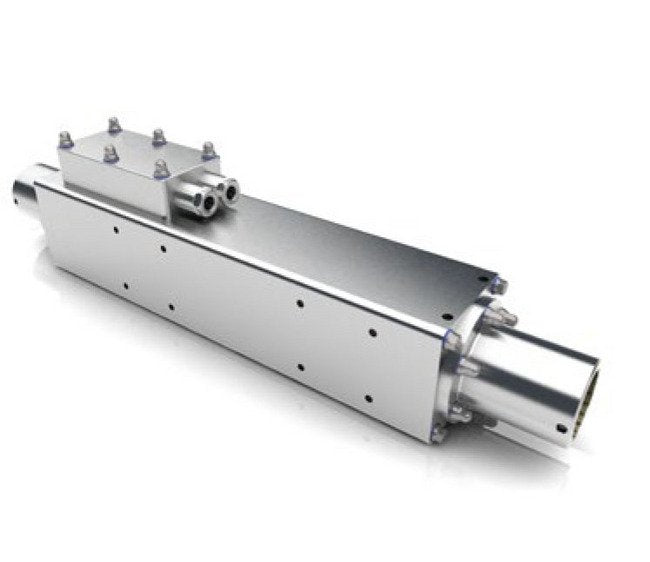

The Dunkermotoren SL 38 STL Series Linear Motor is a highly dynamic 3-phase motor designed for precise positioning and high force applications. With a peak force of 1581N and a peak current of 30A at 25°C, this linear motor offers exceptional performance. It features maintenance-free operation, low noise, and high dynamic capabilities, making it ideal for a wide range of industrial applications. With integrated feedback systems and industry-leading protection standards such as IP65, this linear motor ensures reliable and efficient operation in demanding environments. Compliant with CE and UL standards, it can be seamlessly integrated with popular servo controllers from brands like Schneider and Siemens.
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
430 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
3.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
52.7 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
8.3 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
1.9 A
Technical Specs Nominal Direct Current Dc Voltage
560 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
100.1 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
1581 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
