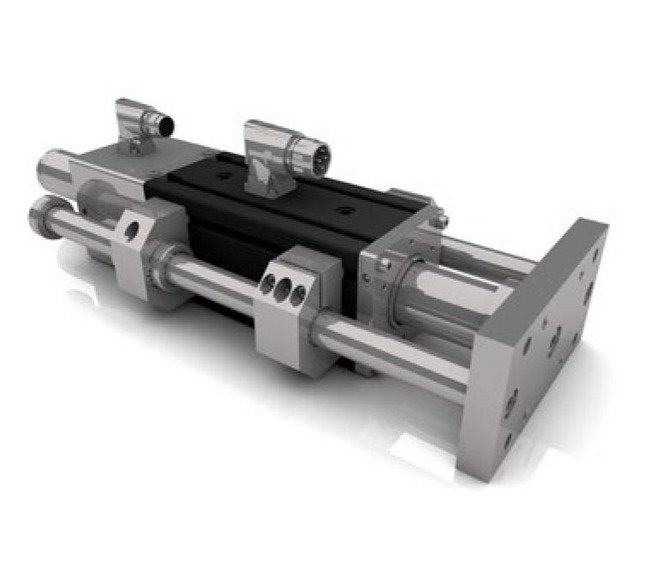

The Dunkermotoren SL 38 TG Series 2214N Peak Force Linear Motor offers precise positioning and high force in a maintenance-free design. With a peak current of 18A and 325V nominal DC voltage, this motor ensures reliable performance. It features a robust twin guide system, dynamic 3-phase motor, and integrated linear encoder for accuracy. Ideal for applications requiring high dynamic performance and vibration resistance.
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
7.2 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
123 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
2 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
295 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 4xx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
18 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
2214 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
