Dunkermotoren Linear Motor SL 38 TG Series
Dunkermotoren Linear Motor SL 38 TG Series
SKU:LIN-8dd22d
High-performance Dunkermotoren Linear Motor with 3690N peak force, 30A peak current, and 560V nominal DC voltage. Ideal for precision industrial applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor SL 38 TG Series
$1,499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor SL 38 TG Series
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

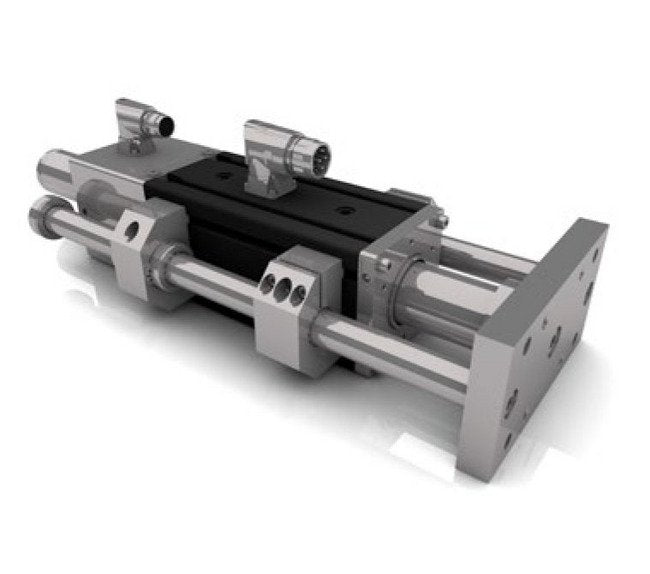

The Dunkermotoren SL 38 TG Series Linear Motor is a high-performance solution designed for precision industrial applications. It features a robust twin guide system for torsion-proof operation, a maintenance-free plain bearing system, and an integrated linear encoder. With a peak force of 3690 N and a peak current of 30 A at 25°C ambient temperature, this motor offers exceptional performance and reliability. Ideal for high dynamic applications, it also includes standard connections for water cooling, ensuring optimal thermal management.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
7.2 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
123 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
3.4 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
560 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
295 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 4xx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
3690 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
