Dunkermotoren Linear Motor SM Series
Dunkermotoren Linear Motor SM Series
SKU:LIN-6bfded
High-performance Dunkermotoren Linear Motor SM Series for precise positioning and high-speed applications. Peak force of 91.9 N and 12 A peak current.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor SM Series
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor SM Series
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

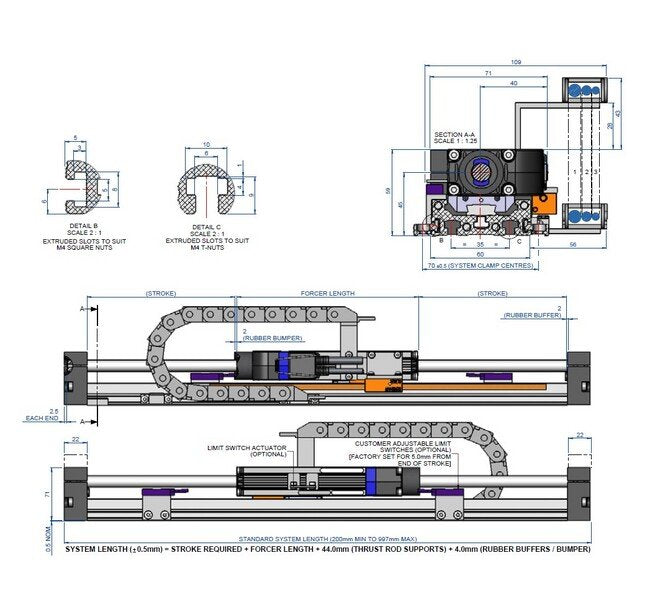

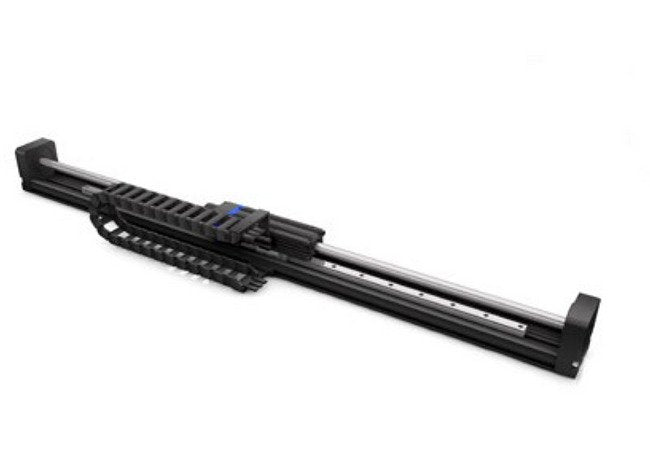

The Dunkermotoren Linear Motor SM Series is an advanced servoTube module designed for high-speed positioning and precision. With a peak force of 91.9 N and peak current of 12 A at 25°C ambient temperature, this linear motor offers exceptional performance. It features a ball-guided linear rail, integrated position sensor, and 'easy drop-in' installation for seamless integration. The motor comes with a 3m cable set and drag chain, along with optional limit switches/high encoder system for enhanced functionality. Ideal for applications requiring force mode, precise positioning, low noise, and vibration resistance.
Product Specifications
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.78 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
19.28 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
8.2 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Maximum Working Direct Current Dc Volta
When operating at 24 V or 48 V reduces the maximum speed.
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
121 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
91.9 N
Technical Specs Peak Power
92 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
