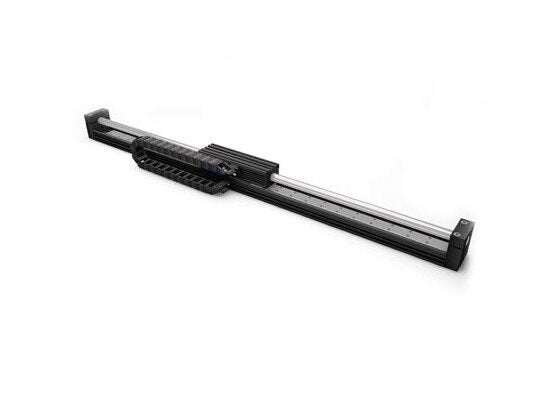

Dunkermotoren Linear Motor - SM Series 468N/20A
Dunkermotoren Linear Motor - SM Series 468N/20A
SKU:LIN-35ab35
High-performance Dunkermotoren linear motor for precise positioning with 468N peak force and 20A peak current. Ideal for force mode operation and low noise applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor - SM Series 468N/20A
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor - SM Series 468N/20A
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

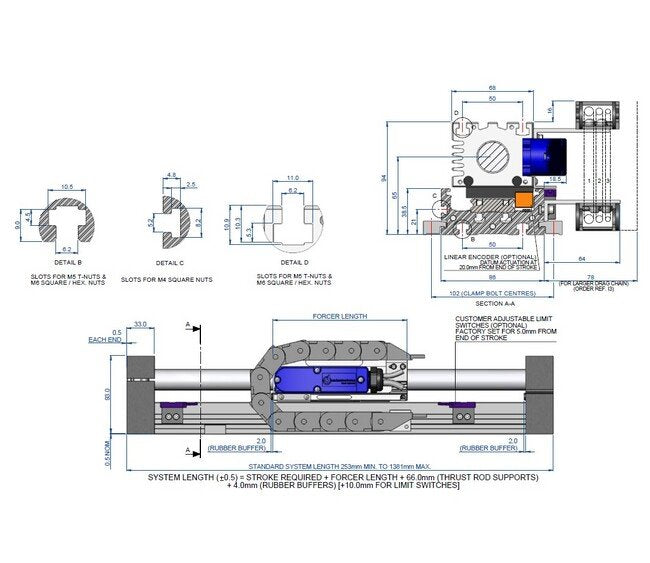

The Dunkermotoren SM Series 468N/20A Linear Motor is a high-performance servoTube module designed for precise and rapid positioning tasks. With a peak force of 468N and peak current of 20A at 25°C ambient temperature, this linear motor offers exceptional controllability and reliability. Equipped with a ball-guided linear rail, integrated position sensor (SIN/COS), and easy 'drop-in' installation, it ensures seamless integration and efficient operation. Ideal for applications requiring force mode operation, precise positioning, low noise, and vibration resistance, this linear motor delivers superior performance.
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches / high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.80 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
59.5 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
6.4 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
222 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
468 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
