Dunkermotoren Linear Motor SM Series 53N/12A
Dunkermotoren Linear Motor SM Series 53N/12A
SKU:LIN-489b58
Premium Dunkermotoren Linear Motor for precise and quiet operation, peak force 53N/12A, high-speed positioning, and exceptional acceleration.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor SM Series 53N/12A
$499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor SM Series 53N/12A
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

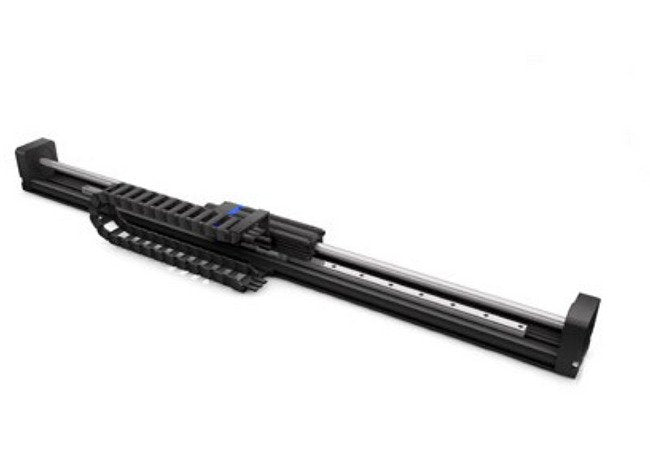

The Dunkermotoren Linear Motor SM Series 53N/12A is a high-performance servo motor engineered for precise positioning and low noise operation. With a peak force of 53N and peak current of 12A at 25°C ambient temperature, this linear motor offers exceptional acceleration of 119 m/s² and a maximum speed of 9.5 m/s. It features a tubular design, ball-guided linear rail, integrated position sensor, and easy 'drop-in' installation. Ideal for applications requiring high speed positioning and repeatability, this motor ensures reliable performance and vibration resistance.
Product Specifications
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.73 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
10.83 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
9.5 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Maximum Working Direct Current Dc Volta
When operating at 24 V or 48 V reduces the maximum speed.
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
119 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
53.0 N
Technical Specs Peak Power
92 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
