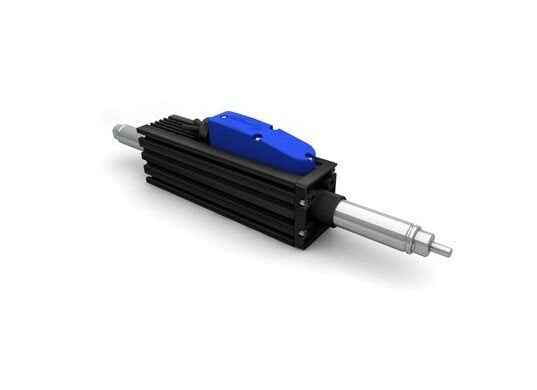

Dunkermotoren Linear Motor ST Series 312N Peak Force 20A Peak Current
Dunkermotoren Linear Motor ST Series 312N Peak Force 20A Peak Current
SKU:LIN-666912
High precision linear motor with 312N peak force, 20A peak current, IP67 protection, and CE compliance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren Linear Motor ST Series 312N Peak Force 20A Peak Current
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Linear Motor ST Series 312N Peak Force 20A Peak Current
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren ST Series Linear Motor delivers high precision and reliability with integrated sin/cos positioning sensor for ±12 micron repeatability. Its IP67 protection, optional brake feature, and superior performance in force mode make it ideal for industrial applications. This motor ensures low noise operation, high dynamics, and maintenance-free usage. Compliant with European Conformity (CE) standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.92 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
42.5 N
Technical Specs Feedback Integrated
1 µm
Technical Specs Force Constant Sine Commutation
22.1 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
5.3 m/s
Technical Specs Maximum Speed Stb
8.9 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 27 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
394 m/s²
Technical Specs Peak Acceleration Stb
223 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
312 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
12 µm
