Dunkermotoren NG Series 20 Gearbox with 21N·m Torque
Dunkermotoren NG Series 20 Gearbox with 21N·m Torque
SKU:NGS-cead9e
Experience exceptional radial load capacity and compact design with the Dunkermotoren NG Series 20 Gearbox for high efficiency and durability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren NG Series 20 Gearbox with 21N·m Torque
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren NG Series 20 Gearbox with 21N·m Torque
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

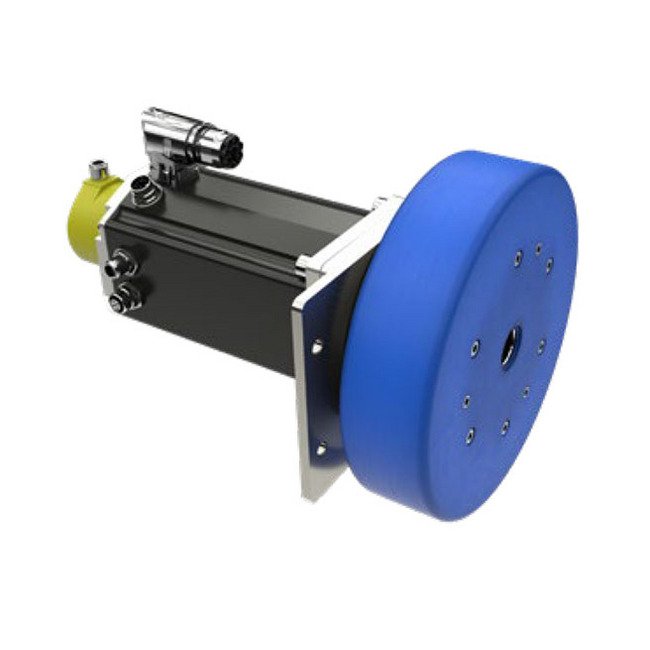

The Dunkermotoren NG Series 20 Gearbox is a precision-engineered solution designed for exceptional radial load capacity. Integrated within the hub, this gearbox offers a compact design that requires minimal installation space. With a durable and robust construction, it features optional wheel lining in special materials for enhanced performance. This gearbox ensures high efficiency, vibration resistance, and a long operational lifespan, making it an ideal choice for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Lifetime lubricationHigh efficiencyVibration resistanceHigh torqueLonglife version
Technical Specs Acceleration Torque
42 N·m
Technical Specs Axial Load
1667 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
21 N·m
Technical Specs Efficiency
85 %
Technical Specs Emergency Stop Torque
63 N·m
Technical Specs Maximum Backlash
40 arc-min
Technical Specs Number Of Stages
2
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP54)
Technical Specs Radial Load
5000 N
Technical Specs Reduction Ratio
20
Technical Specs Series
NG
Technical Specs Weight Of Gearbox
9.2 kg
