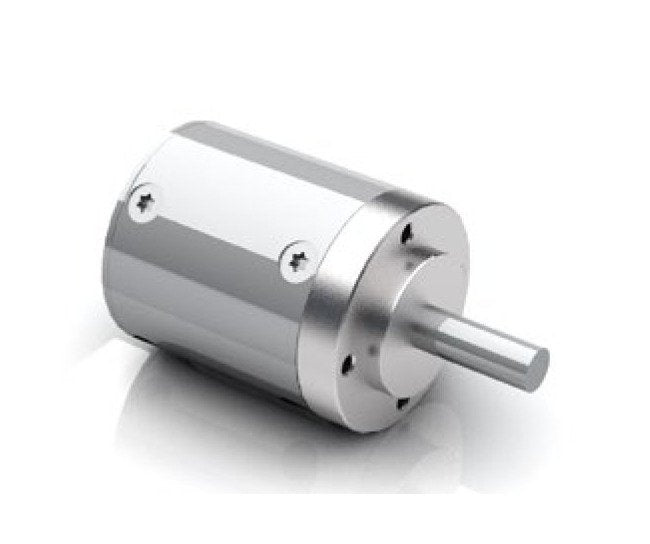

Dunkermotoren PLG 22-60 Gearbox, 512:1 Ratio, 4 Nm Torque
Dunkermotoren PLG 22-60 Gearbox, 512:1 Ratio, 4 Nm Torque
SKU:PLG-338d3d
High-efficiency Dunkermotoren PLG gearbox, 512:1 ratio, 4 Nm torque, steel construction
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Dunkermotoren PLG 22-60 Gearbox, 512:1 Ratio, 4 Nm Torque
$279.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 22-60 Gearbox, 512:1 Ratio, 4 Nm Torque
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG 22 to 60 Series Gearbox offers a compact and high-efficiency solution for industry applications. With a reduction ratio of 512:1 and a continuous torque of 4 Nm, this planetary gearbox is designed for optimal performance. Featuring steel construction, double ball bearing output shaft, and straight toothing across all stages, this gearbox ensures durability and reliability. Additionally, with options for food-grade and low-temperature lubrication, high torque capability, and vibration resistance, the PLG gearbox meets stringent industry standards while delivering exceptional performance.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperature lubricationHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
30 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
4 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
100 N
Technical Specs Reduction Ratio
512
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.23 kg
