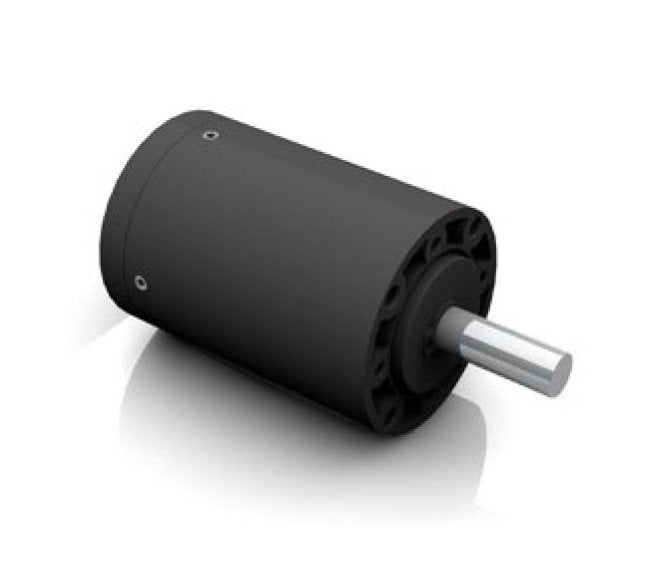

Dunkermotoren PLG 256:1 Gearbox - 3 Nm Continuous Torque
Dunkermotoren PLG 256:1 Gearbox - 3 Nm Continuous Torque
SKU:PLG-23d0f1
Highly efficient Dunkermotoren PLG 256:1 Gearbox delivering 3 Nm continuous torque, ideal for industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren PLG 256:1 Gearbox - 3 Nm Continuous Torque
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 256:1 Gearbox - 3 Nm Continuous Torque
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 22 to 60 Gearboxes offer high efficiency and a robust design suitable for various applications. With a reduction ratio of 256:1 and a continuous torque of 3 Nm, these planetary gearboxes provide outstanding performance. Featuring lifetime lubrication and excellent vibration resistance, they ensure reliable operation with minimal maintenance needs. Ideal for institutional and government procurement, these gearboxes meet stringent quality standards and offer durability and efficiency for long-term use.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
256
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.25 kg
