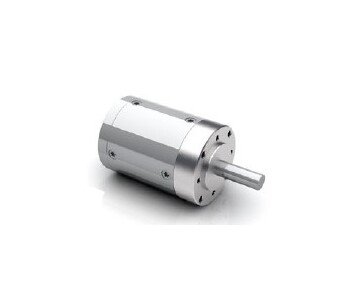

Dunkermotoren PLG 256 Ratio Compact Planetary Gearbox
Dunkermotoren PLG 256 Ratio Compact Planetary Gearbox
SKU:PLG-91655a
Discover Dunkermotoren's PLG Series Gearbox, offering high torque, efficiency, and durability for industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren PLG 256 Ratio Compact Planetary Gearbox
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 256 Ratio Compact Planetary Gearbox
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 256 Reduction Ratio Gearbox offers exceptional performance for various applications. With a continuous torque of up to 14 N·m and precision engineering, this gearbox ensures reliable operation. Featuring lifetime lubrication, food-grade compatibility, and high efficiency, it meets the demands of industrial and institutional sectors. The compact design and high torque capacity make it ideal for diverse settings, providing a robust solution for your gear needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
256
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
