Dunkermotoren PLG 28.12 1.5 Nm Gearbox
Dunkermotoren PLG 28.12 1.5 Nm Gearbox
SKU:PLG-1f3dd3
Enhance efficiency with Dunkermotoren PLG 28.12 1.5 Nm Gearbox for reliable performance in industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG 28.12 1.5 Nm Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 28.12 1.5 Nm Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

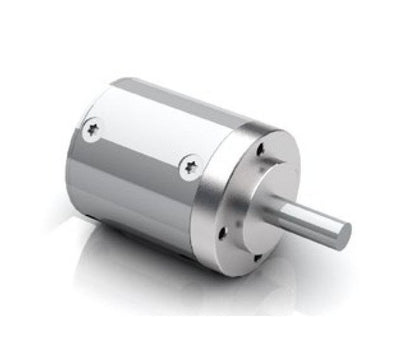

The Dunkermotoren PLG Series 28.12 Reduction Ratio Gearbox offers industry-compatible planetary technology with a high-efficiency design. Built with steel components, double ball bearings on the output shaft, and straight toothing in all stages, it ensures reliable performance. With a continuous torque of 1.5 N·m, this compact gearbox provides exceptional durability and efficiency, making it ideal for various industrial applications. Additionally, with features like lifetime lubrication, food-grade lubrication, and vibration resistance, it meets stringent quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperature lubricationHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
30 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.50 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
100 N
Technical Specs Reduction Ratio
28.12
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.18 kg
