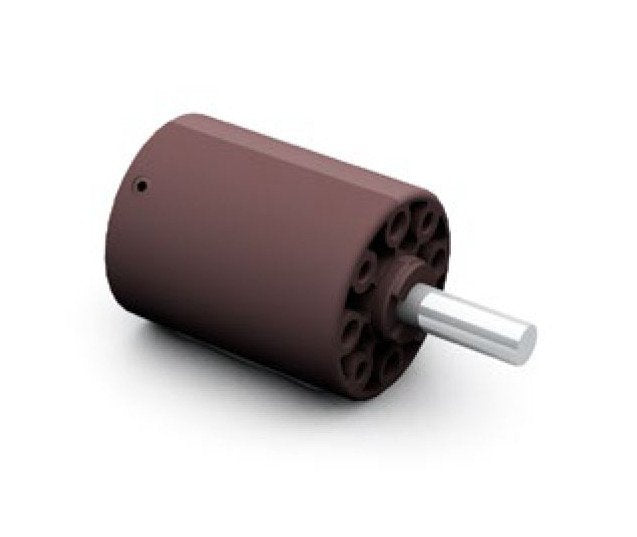

Dunkermotoren PLG 28.125 Gearbox
Dunkermotoren PLG 28.125 Gearbox
SKU:PLG-04b9d1
High-efficiency Dunkermotoren PLG 28.125 Gearbox with 0.8 N·m torque, low noise, and lifetime lubrication for industrial needs.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Dunkermotoren PLG 28.125 Gearbox
$239.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 28.125 Gearbox
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG 28.125 Gearbox is a high-performance solution featuring an 81% efficiency and 0.8 N·m continuous torque. Specifically designed for industrial applications, this planetary gearbox offers low noise operation, lifetime lubrication, and exceptional vibration resistance. With a compact design and high torque capacity, it meets the stringent requirements of institutional and government buyers, providing maintenance-free reliability and precise gear efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0.8 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
28.125
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.08 kg
