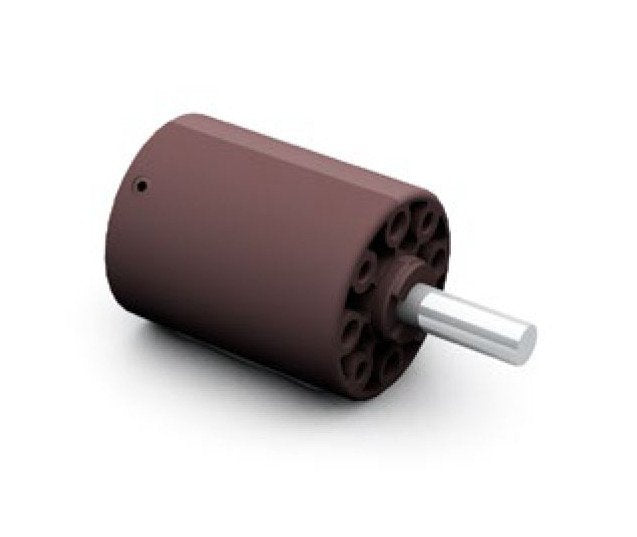

Dunkermotoren PLG 400 Reduction Ratio Gearbox
Dunkermotoren PLG 400 Reduction Ratio Gearbox
SKU:PLG-4b2502
Enhance efficiency and reliability with Dunkermotoren PLG 400 Reduction Ratio Gearbox. Compact, durable, and high-performance for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG 400 Reduction Ratio Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG 400 Reduction Ratio Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG 400 Reduction Ratio Gearbox from the PLG 22 to 60 Series is crafted for high efficiency and durability. Featuring ring gear and planetary gears made of premium materials, this gearbox ensures optimal performance. With a reduction ratio of 400 and a continuous torque of 1.8 N·m, it offers exceptional reliability and smooth operation. This gearbox is designed with a compact yet robust build, making it ideal for demanding industrial applications. The gearbox is equipped with features like low noise, lifetime lubrication, and vibration resistance, further enhancing its value for institutional and government buyers.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.80 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
400
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.09 kg
