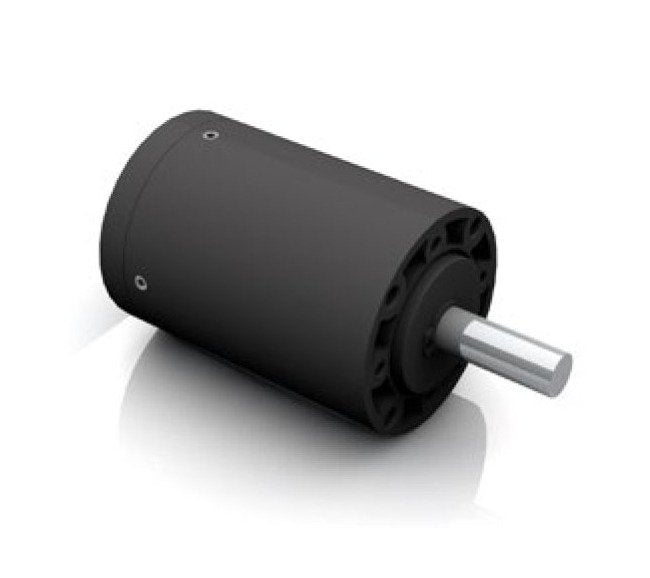

The Dunkermotoren PLG Series 100 Gearbox offers exceptional efficiency with straight-toothed stages and a double ball-bearing output shaft. With a reduction ratio of 100 and continuous torque of 3 N·m, this planetary gearbox ensures long-lasting performance. Featuring a compact design, vibration resistance, and lifetime lubrication, it caters to diverse material requirements while boasting a high gear efficiency of 97%. Ideal for applications requiring high continuous torque capacity and reliability.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
100
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.25 kg
