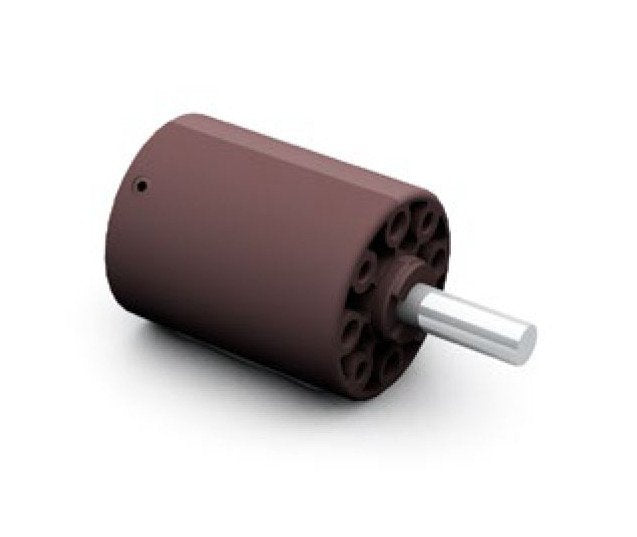

Dunkermotoren PLG Series 126.56 Planetary Gearbox
Dunkermotoren PLG Series 126.56 Planetary Gearbox
SKU:PLG-f1d6c4
High-efficiency Dunkermotoren PLG Series 126.56 Planetary Gearbox with 126.56 reduction ratio and 1.80 N·m continuous torque. Features low noise, lifetime lubrication, and vibration resistance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 126.56 Planetary Gearbox
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 126.56 Planetary Gearbox
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 126.56 Planetary Gearbox is a high-efficiency solution designed with ring gear and planetary gears made of high-grade materials. With a reduction ratio of 126.56 and a continuous torque of 1.80 N·m, this gearbox offers exceptional performance. It features a compact design, low weight, and excellent gear efficiency of up to 97%, making it ideal for applications requiring reliable and precise torque transmission. Additionally, it is equipped with features like low noise, lifetime lubrication, food-grade lubrication, low-temperature lubrication, and vibration resistance, ensuring long-term durability and smooth operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.80 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
126.56
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.09 kg
