Dunkermotoren PLG Series 128 Gearbox with Up to 14 Nm Torque
Dunkermotoren PLG Series 128 Gearbox with Up to 14 Nm Torque
SKU:PLG-d7d999
High torque Dunkermotoren PLG Series 128 Gearbox with 0-14 Nm torque, ideal for precision and durability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 128 Gearbox with Up to 14 Nm Torque
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 128 Gearbox with Up to 14 Nm Torque
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

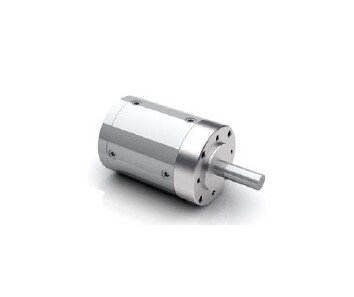

The Dunkermotoren PLG Series 128 Gearbox is a compact and industry-compatible planetary gearbox known for its high continuous torque capacity. With a reduction ratio of 128 and a continuous torque range of 0 to 14 N·m, this gearbox offers exceptional efficiency of 73%. Featuring dual ball bearings on the output shaft, straight toothing on all stages, and a steel ring gear material, this gearbox ensures reliability and longevity. Its lightweight design, high efficiency, and maintenance-free operation make it an ideal choice for applications requiring precision and durability.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
128
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
