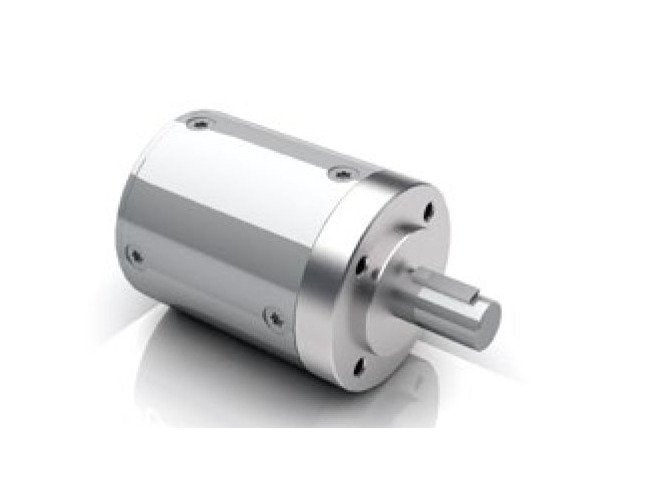

Dunkermotoren PLG Series 15 Gearbox
Dunkermotoren PLG Series 15 Gearbox
SKU:PLG-dc48cf
Experience superior efficiency and heavy-duty performance with the Dunkermotoren PLG Series 15 Gearbox.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 15 Gearbox
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 15 Gearbox
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 15 Gearbox offers superior efficiency with an 81% rating and a continuous torque of 4 N·m, ideal for heavy-duty applications. With a compact design, low weight, and double ball bearings ensuring smooth operation, this planetary gearbox guarantees reliable performance and low noise levels. It features a sturdy steel ring gear, IP50 protection, and can withstand axial loads up to 500 N, making it suitable for demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
5.5 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
4 N·m
Technical Specs Efficiency
81 %
Technical Specs Emergency Stop Torque
18 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
2
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
15
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.7 kg
