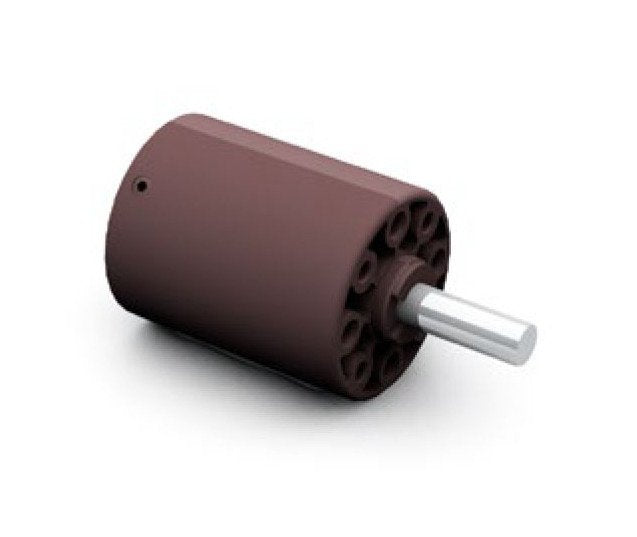

Dunkermotoren PLG Series 15 Planetary Gearbox
Dunkermotoren PLG Series 15 Planetary Gearbox
SKU:PLG-c28eed
Discover the Dunkermotoren PLG Series 15 Planetary Gearbox for high torque efficiency and reliability in a compact design.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 15 Planetary Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 15 Planetary Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 15 Planetary Gearbox offers a state-of-the-art solution for high torque applications. With a reduction ratio of 15 and a continuous torque of 0.8 Nm, this gearbox ensures optimal performance and efficiency. Made with high-grade materials, it features low noise, lifetime lubrication, and exceptional gear efficiency. Ideal for institutional and government applications requiring compact design and reliable gear performance.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0.8 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
15
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.08 kg
