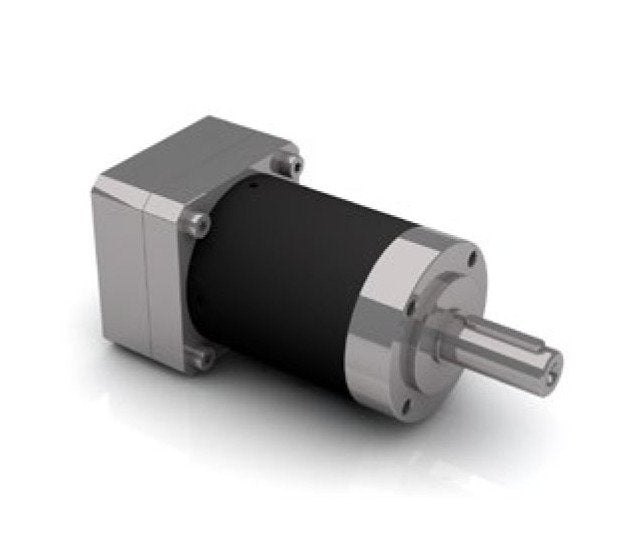

Dunkermotoren PLG Series 15 Planetary Gearbox
Dunkermotoren PLG Series 15 Planetary Gearbox
SKU:PLG-f2ff48
High-performance Dunkermotoren PLG Series 15 Planetary Gearbox with low backlash, IP52 protection, and 95% efficiency. Ideal for heavy-duty precision applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 15 Planetary Gearbox
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 15 Planetary Gearbox
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 15 Planetary Gearbox is a high-performance gearbox with low backlash, IP52 standard protection (upgradable to IP65), and exceptional efficiency of 95%. Designed for durability, it offers a long working life exceeding 20,000 hours. With a continuous torque of 7 N·m in S8 operation mode, this gearbox is ideal for heavy-duty applications requiring reliability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.The construction sizes are partly available to different degrees:LB: Low backlash / very high lifetime / IP 54 standard including shaft
Features Features
Low backlashLifetime lubricationFood grade lubricationLow temperature lubricationLonglife versionHigh torqueVibration resistance
Technical Specs Acceleration Torque
14 N·m
Technical Specs Axial Load 13 Millimeter Mm Off Mounting Surface
65 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque S1 Operation Mode
18 N·m
Technical Specs Continuous Torque S8 Operation Mode
7 N·m
Technical Specs Efficiency
95 %
Technical Specs Emergency Stop Torque
36 N·m
Technical Specs Maximum Backlash
19 arc-min
Technical Specs Note For Acceleration Torque
S8 Operating mode (alternating load); within maximum 1 second
Technical Specs Note For Axialradial Load 13 Millimeter Mm Off M
Related to gearbox output speed = 100 rpm
Technical Specs Note For Continuous Torque S1 Operation Mode
S1 Operation mode (swelling load) gearbox output speed = 100 rpm; service lifetime check by application consulting requiredRelated to gearbox output speed = 100 rpm
Technical Specs Note For Continuous Torque S8 Operation Mode
S8 Operation mode (alternating load) motor speed = 3000 rpm
Technical Specs Note For Emergency Stop Torque
Statically 100 times alternating
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP52) | Up to Ingress Protection (IP65)
Technical Specs Radial Load 13 Millimeter Mm Off Mounting Surfac
200 N
Technical Specs Reduction Ratio
15
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.5 kg
