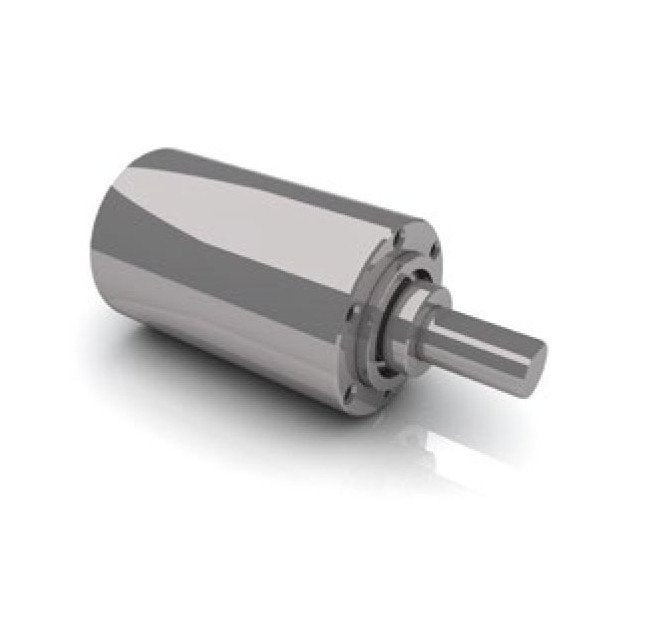

Dunkermotoren PLG Series 1537.73 Planetary Gearbox
Dunkermotoren PLG Series 1537.73 Planetary Gearbox
SKU:PLG-6d3da8
High-torque Dunkermotoren PLG 1537.73 Planetary Gearbox - compact, efficient, and maintenance-free for industrial applications.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 1537.73 Planetary Gearbox
$219.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 1537.73 Planetary Gearbox
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched compact design and high torque with the Dunkermotoren PLG Series 1537.73 Planetary Gearbox. With a reduction ratio of 1537.73 and a continuous torque of 2.10 N·m, this gearbox offers exceptional efficiency at 53%. Features lifetime lubrication, food-grade lubrication, and high efficiency, making it ideal for various industrial applications. Meeting stringent industry standards, this gearbox ensures reliability and performance excellence.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.The construction sizes are partly available to different degrees:HT: High power density / extra robust / all duty cycles / IP 65. Gearbox body up to IP 65. Then the drive shaft has got IP 52 and gets heightened up to a better protection class by the customer if necessary.
Features Features
Lifetime lubricationFood grade lubricationLow temperature lubricationHigh efficiencyHigh torqueVibration resistance
Technical Specs Acceleration Torque
2.30 N·m
Technical Specs Axial Load 4 Millimeter Mm Shaft
16 N
Technical Specs Axial Load 6 Millimeter Mm Shaft
45 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
2.10 N·m
Technical Specs Efficiency
53 %
Technical Specs Emergency Stop Torque
3.80 N·m
Technical Specs Maximum Backlash
120 arc-min
Technical Specs Note For Acceleration Torque
Only for 6 mm shaft
Technical Specs Note For Axialradial Load
10 mm off mounting surface
Technical Specs Note For Continuous Torque
Only for 6 mm shaft
Technical Specs Note For Emergency Stop Torque
Only for 6 mm shaft
Technical Specs Number Of Stages
5
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP52)
Technical Specs Radial Load 4 Millimeter Mm Shaft
48 N
Technical Specs Radial Load 6 Millimeter Mm Shaft
135 N
Technical Specs Reduction Ratio
1537.73
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.14 kg
