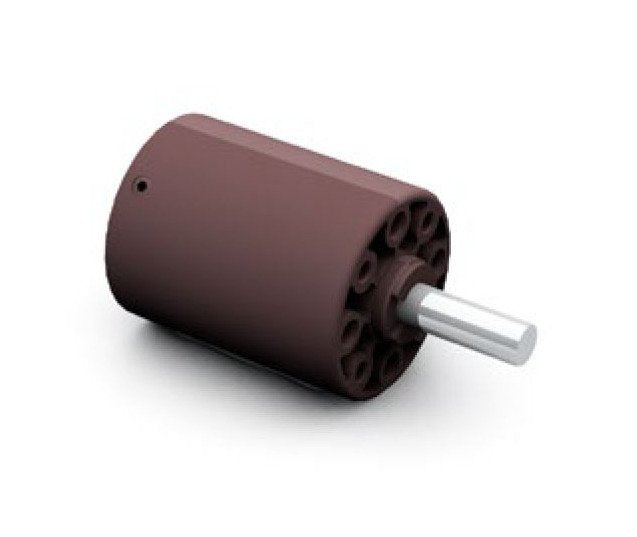

Dunkermotoren PLG Series 162 Gearbox
Dunkermotoren PLG Series 162 Gearbox
SKU:PLG-5c5d4e
Premium Dunkermotoren PLG Series 162 Gearbox with high efficiency, low noise, and maintenance-free design.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 162 Gearbox
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 162 Gearbox
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 162 Gearbox offers high efficiency with planetary gears made of premium materials, ensuring durability and longevity. With a reduction ratio of 162 and a continuous torque of 1.8 N·m, this gearbox provides reliable performance. It features low noise operation, lifetime lubrication, food-grade lubrication, and excellent vibration resistance. Ideal for institutions seeking compact design and maintenance-free planetary gearboxes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.80 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
162
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.09 kg
