Dunkermotoren PLG Series 20.25 Reduction Ratio Gearbox
Dunkermotoren PLG Series 20.25 Reduction Ratio Gearbox
SKU:PLG-aac806
High-efficiency Dunkermotoren gearbox with 20.25 reduction ratio & 1.5 N·m torque for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 20.25 Reduction Ratio Gearbox
$129.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 20.25 Reduction Ratio Gearbox
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

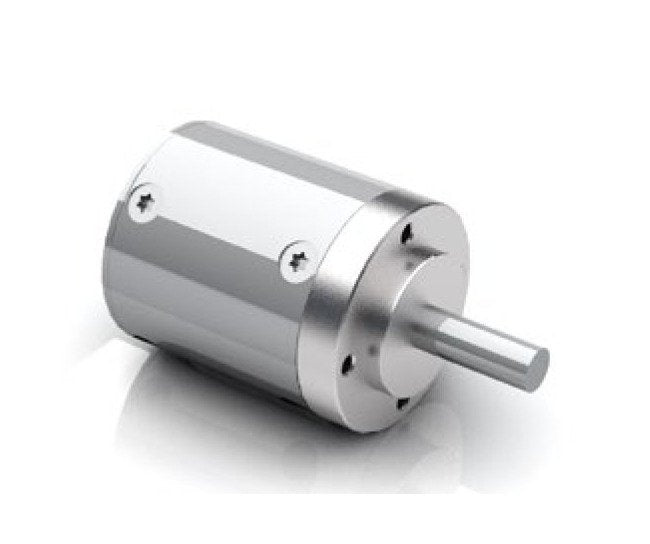

The Dunkermotoren PLG Series 20.25 Reduction Ratio Gearbox is a compact and high-efficiency planetary gearbox designed for industrial applications. With a continuous torque of 1.5 N·m and a durable construction featuring steel components, this gearbox offers superior performance. It is equipped with double ball bearings on the output shaft, ensuring stability under varying loads. The gearbox's straight toothing design enhances overall efficiency, making it a reliable choice for demanding environments.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperature lubricationHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
30 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.50 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
100 N
Technical Specs Reduction Ratio
20.25
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.18 kg
