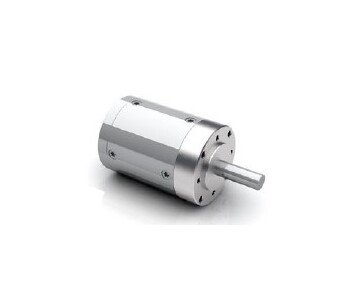

Dunkermotoren PLG Series 200 Gearbox - Up to 14 Nm Torque
Dunkermotoren PLG Series 200 Gearbox - Up to 14 Nm Torque
SKU:PLG-a384e9
High-performance Dunkermotoren PLG Series 200 Gearbox with up to 14 Nm torque, compact design, and lifetime lubrication.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 200 Gearbox - Up to 14 Nm Torque
$329.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 200 Gearbox - Up to 14 Nm Torque
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 200 Gearbox offers exceptional performance for a wide range of applications. With a reduction ratio of 200 and up to 14 Nm continuous torque, this gearbox is designed for durability and efficiency. Featuring a compact design, lifetime lubrication, high torque capacity, and vibration resistance, it meets the highest industry standards for reliability and performance. Whether for consumer or institutional buyers, this gearbox delivers top-notch quality and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
200
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
