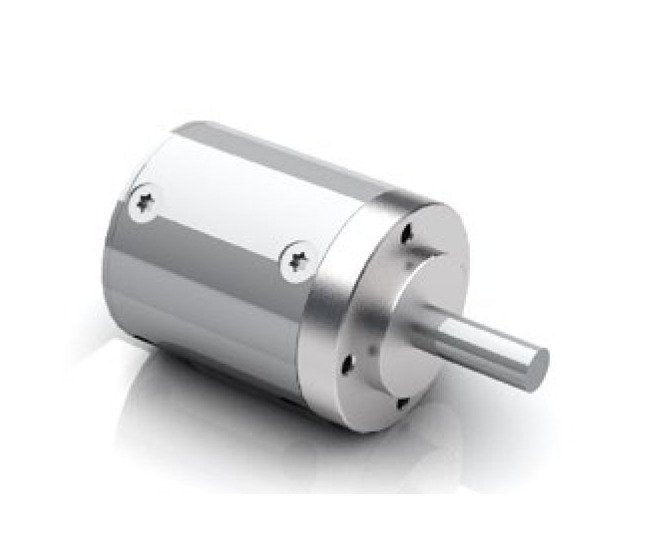

Dunkermotoren PLG Series 225 Gearbox
Dunkermotoren PLG Series 225 Gearbox
SKU:PLG-001b38
High-performance Dunkermotoren PLG Series 225 Gearbox for industrial applications, featuring compact design, high torque, and maintenance-free operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 225 Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 225 Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 225 Gearbox is a compact and high-efficiency planetary gearbox designed to meet the rigorous demands of industrial applications. With a reduction ratio of 225 and a continuous torque of 4 N·m, this gearbox offers exceptional performance. Made with steel components including ring gear, planetary carriers, and sun wheels, it ensures durability and reliability. The gearbox features a double ball bearing output shaft, straight toothing in all stages, and compatibility with a variety of materials to suit different requirements. Additionally, it boasts a maintenance-free design, lifetime lubrication, food-grade lubrication, low-temperature lubrication, high torque output, and vibration resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperature lubricationHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
30 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
4 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
100 N
Technical Specs Reduction Ratio
225
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.23 kg
