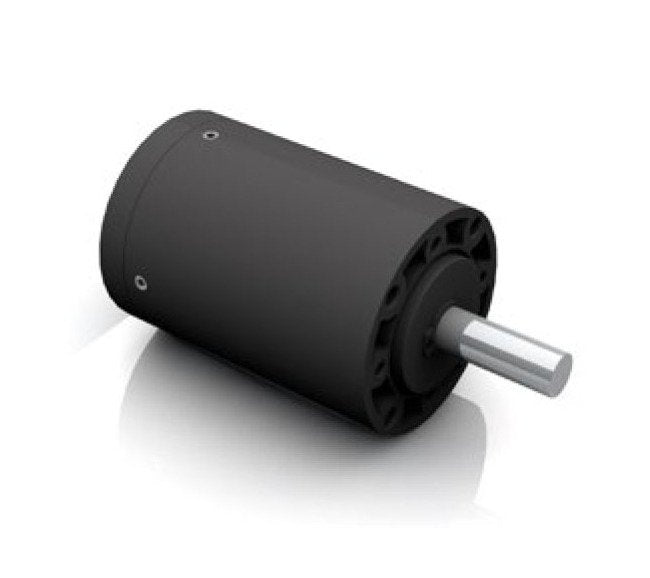

Dunkermotoren PLG Series 25 Gearbox with 1.3 Nm Torque
Dunkermotoren PLG Series 25 Gearbox with 1.3 Nm Torque
SKU:PLG-3c6ee8
High-efficiency Dunkermotoren PLG Series 25 Gearbox with 1.3 Nm torque, double ball bearings, and straight toothing. Compact and durable design.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 25 Gearbox with 1.3 Nm Torque
$189.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 25 Gearbox with 1.3 Nm Torque
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 25 Gearbox offers superior efficiency and durability, featuring double ball bearings on the output shaft and straight toothing across all stages. With an 81% efficiency rating and compact design, this gearbox delivers a continuous torque of 1.3 Nm. Ideal for various applications, this maintenance-free planetary gearbox ensures vibration resistance and lifetime lubrication, making it a reliable choice for demanding environments.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.3 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
25
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.2 kg
