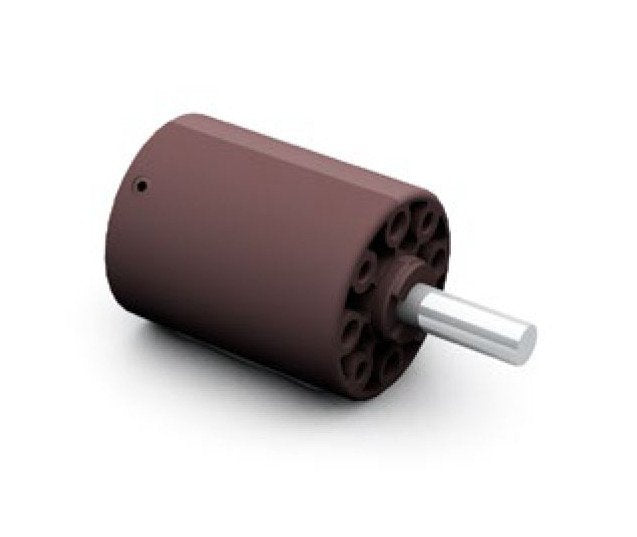

Dunkermotoren PLG Series 288 Planetary Gearbox

Dunkermotoren PLG Series 288 Planetary Gearbox

SKU:PLG-1eae83

Experience high-grade efficiency with Dunkermotoren PLG Series 288 Gearbox. Precision, durability, and reliability in one compact solution.

Regular price $349.99
Regular price Sale price $349.99
Sale

Initiate Order

Dunkermotoren PLG Series 288 Planetary Gearbox

Dunkermotoren PLG Series 288 Planetary Gearbox

$349.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren PLG Series 288 Planetary Gearbox

Dunkermotoren PLG Series 288 Planetary Gearbox

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren PLG Series 288 Planetary Gearbox is a high-efficiency solution crafted with ring gear and planetary gears of specific high-grade material. With a reduction ratio of 288 and continuous torque of 1.8 N·m, this gearbox offers outstanding performance. Featuring a compact design, low weight, and excellent gear efficiency, it is designed for durability and low maintenance. Ideal for industrial applications requiring precision and reliability.

Product Specifications

Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.80 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
288
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.09 kg
