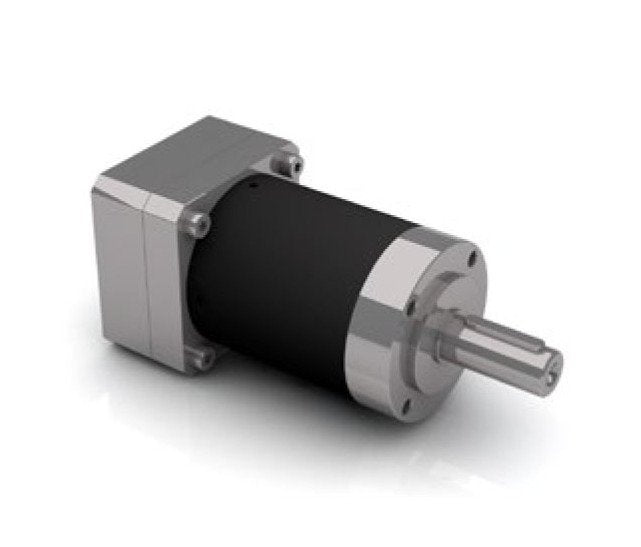

Dunkermotoren PLG Series 3 Gearbox
Dunkermotoren PLG Series 3 Gearbox
SKU:PLG-1ea8ff
High-performance Dunkermotoren PLG Series 3 Gearbox with 4 N·m continuous torque, low backlash, and IP52 protection.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 3 Gearbox
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 3 Gearbox
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 3 Gearbox is a high-performance, low backlash servo planetary gearbox designed for superior durability and efficiency. With a continuous torque of 4 N·m in S8 Operation Mode, this gearbox offers exceptional reliability, long working life exceeding 20,000 hours, and IP52 standard protection for reliable operation. The gearbox features a reduction ratio of 3, 97% efficiency, and a compact design suitable for a wide range of applications.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.The construction sizes are partly available to different degrees:LB: Low backlash / very high lifetime / IP 54 standard including shaft
Features Features
Low backlashLifetime lubricationFood grade lubricationLow temperature lubricationLonglife versionHigh torqueVibration resistance
Technical Specs Acceleration Torque
8 N·m
Technical Specs Axial Load 13 Millimeter Mm Off Mounting Surface
65 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque S1 Operation Mode
9 N·m
Technical Specs Continuous Torque S8 Operation Mode
4 N·m
Technical Specs Efficiency
97 %
Technical Specs Emergency Stop Torque
19 N·m
Technical Specs Maximum Backlash
15 arc-min
Technical Specs Note For Acceleration Torque
S8 Operating mode (alternating load); within maximum 1 second
Technical Specs Note For Axialradial Load 13 Millimeter Mm Off M
Related to gearbox output speed = 100 rpm
Technical Specs Note For Continuous Torque S1 Operation Mode
S1 Operation mode (swelling load) gearbox output speed = 100 rpm; service lifetime check by application consulting requiredRelated to gearbox output speed = 100 rpm
Technical Specs Note For Continuous Torque S8 Operation Mode
S8 Operation mode (alternating load) motor speed = 3000 rpm
Technical Specs Note For Emergency Stop Torque
Statically 100 times alternating
Technical Specs Number Of Stages
1
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP52) | Up to Ingress Protection (IP65)
Technical Specs Radial Load 13 Millimeter Mm Off Mounting Surfac
200 N
Technical Specs Reduction Ratio
3
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.4 kg
